Climate chamber THR

thermostatictemperaturehumidity

Description

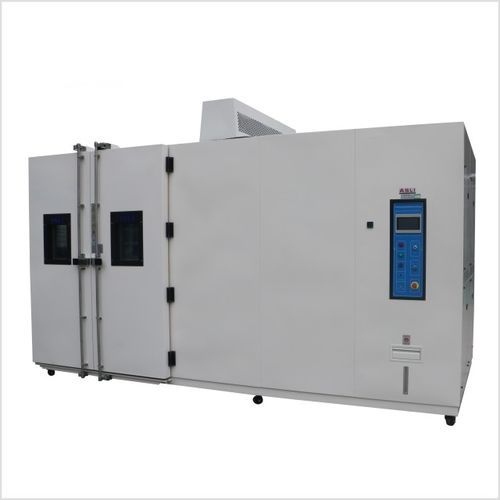

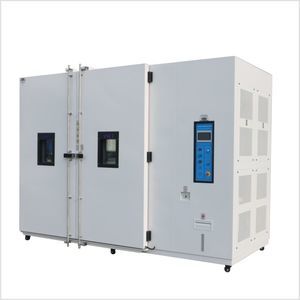

The THR Series walk-in temperature and humidity stability test chamber is engineered for whole-product environmental reliability testing of large automotive spare parts and assemblies. It provides combined temperature and humidity control in a customizable walk-in room to evaluate durability, performance and conformity under controlled climatic cycles.

Overview
THR Series — Temperature Humidity Room. Integrated pipe and duct design with an all-in-one touchscreen controller and PLC. Room dimensions, internal layout and configuration are customizable to match the device under test (DUT) and laboratory constraints. Suitable for electronics, automotive, LED, PCB, appliances, research labs and certification centers.

Features

• Customization: internal dimensions and room size built to DUT specifications; supports carts and fixtures for whole-product testing.
• Temperature grades: six low-temperature options (A–F) down to −70 °C; standard high temperature 80 °C (80–150 °C optional).
• PID temperature and humidity control for stable and accurate environmental regulation.
• Programmable profiles: 100 patterns × 999 segments with ramp-rate control.
• Real-time humidity sensing for closed-loop humidity control.
• Walk-in access for testing fully assembled parts and machinery.
• Safety: seven independent protection layers (power, motor, compressor, heater, water, etc.).
• 50 mm cable test port to route cables to DUT during testing.
• USB data export for test recording and traceability.
• Heated double-glazed observation window with interior lighting.
• External water supply with auto-recyclable humidifying pot; optional dehumidifier for extended humidity ranges.

Key Built-in Functions

• PID temperature & humidity control
• Programmable profiles and ramp-rate control
• Real-time humidity sensor for closed-loop control
• Independent overheat thermostat cut-off
• 50 mm cable test port
• USB data export
• Heated double-glazed observation window
• External water supply connection

Standards

• IEC 68-2-1 (Cold)
• IEC 68-2-2 (Dry Heat)
• IEC 68-2-3 (Damp Heat — Steady State)
• IEC 68-2-30 (Damp Heat — Cyclic)
• IEC 68-2-14 (Change of Temperature)
• MIL-STD-810G / MIL-STD-810F (Environmental Test)
• ISO 16750-3 (Road Vehicles — Mechanical Loads)

Applications

• Automotive components and spare parts (complete assemblies)
• LED modules and PCB assemblies
• Electronics and telecommunications equipment
• Household appliances and large equipment
• Research, university and corporate test laboratories
• Testing and certification bodies

Deliverables & Service

• Installation and operation manual (including wiring diagrams and start-up checklist)
• Export packing list and shipping documentation
• 12-month warranty covering chamber, refrigeration system and controller
• Standard lead time for custom walk-in chambers: 30–40 working days after drawing approval
• Remote technical support included; on-site installation and commissioning available

Technical Specifications

• Model: THR Series (THR-volume — low-temperature options A~F)
• Internal dimensions: factory-direct, customizable to DUT
• Temperature range: Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C; High: 80 °C (80–150 °C optional)
• Humidity range: 20% ~ 98% R.H. (10–98% / 5–98% available with dehumidifier option)
• Indication resolution / distribution uniformity: 0.1 °C; 0.1% R.H. / ±2.5 °C; ±3.5% R.H.
• Control accuracy: ±0.5 °C; ±2.5% R.H.
• Temperature rise/fall velocity: Rise approx. 0.1 ~ 3.0 °C/min; Fall approx. 0.3 ~ 1.0 °C/min (faster rates optional)
• Cooling system: water-cooled or air-cooled
• Compressors: French Tecumseh or German Bitzer options
• Protection devices: fuse-free switch, compressor overload protection, high/low coolant voltage protection, over-humidity & over-temperature protection, fault warning system, water shortage protection
• Optional accessories: cart ramp, recorder, water purifier, dehumidifier
• Power: AC 380 V (±10%), 50/60 Hz, 3-phase 5-wire
• Laboratory floor loading capacity: 600 kg/m² (uniform load)
