Climate chamber THR

thermostatichumiditytemperature

Overview

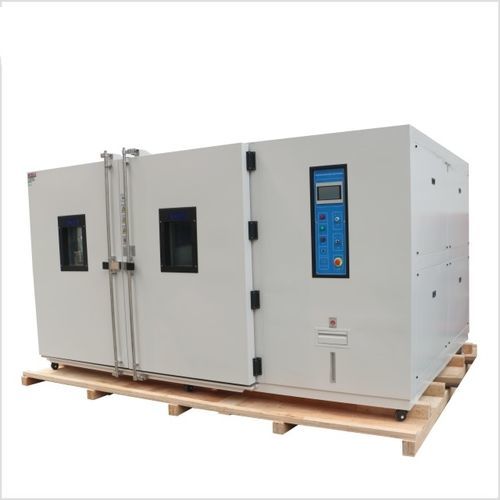

The THR Series walk-in temperature and humidity environmental test chamber is a customizable climate room for accelerated temperature and humidity testing of large parts and whole products, including PV solar panels, electronics, automotive components, LED systems and appliances. The system combines temperature and humidity control, programmable profiles, multiple safety protections and on-site installation support.

Series / Identity
THR Series — Temperature Humidity Room

Key Benefits

• Internal dimensions customizable to fit the DUT and lab layout, enabling whole-product tests without disassembly.
• Six selectable low-temperature grades (A–F) down to −70 °C; standard high temperature to 80 °C with optional extension to 150 °C.
• Integrated temperature and humidity control in a walk-in format for representative environmental testing of full-size assemblies.
• Multiple independent protection layers for sample, operator and system safety.
• Programmable test profiles and USB data export for reporting and traceability.

Features (What This System Delivers)

• Full customization — room size and internal layout built to customer specifications.
• Temperature coverage — six low-temperature grades (A–F) to −70 °C; optional high-temperature capability to 150 °C.
• Access and handling — walk-in door and cart-compatible design for easy loading of panels and assemblies.
• Safety — redundant protections: power, motor, compressor, heater, water shortage, over-temperature and over-humidity alarms.

Built-in Functions

• PID temperature and humidity control for stable, accurate regulation.
• Programmable profiles: 100 patterns × 999 segments each; ramp-rate control supported.
• Real-time humidity sensor and closed-loop humidity control.
• Independent overheat thermostat for cut-off protection.
• 50 mm cable test port for routing cables during tests.
• USB data storage for exporting test logs.
• Double-glazed heated observation window (sweat-proof) with interior lighting.
• External water supply option for humidifier pot with auto-recycle.

Standards Supported

• IEC 68-2-1 (Cold)
• IEC 68-2-2 (Dry Heat)
• IEC 68-2-3 (Damp Heat — Steady State)
• IEC 68-2-30 (Damp Heat — Cyclic)
• IEC 68-2-14 (Change of Temperature)
• MIL-STD-810G / MIL-STD-810F (Environmental Test)
• ISO 16750-3 (Road Vehicles — Mechanical Loads)

Delivery & Service (Included)

• Installation and operation manual with wiring diagrams and start-up checklist.
• Export packing list and shipping documentation.
• 12-month warranty covering chamber, refrigeration system and controller.
• Standard lead time for custom walk-in chambers: 30–40 working days from confirmed drawings.
• Lifetime remote technical support; on-site commissioning available at additional cost.

Optional Accessories

• Slope for cart
• Data recorder
• Water purifier
• Dehumidifier

Table — THR Series walk-in climate test chamber specifications
Parameter — Specification
Model — THR-volume (low-temperature options A–F)
Internal Dimensions — Factory direct — internal dimensions customizable
Temperature Range — Low: (A) 25 °C / (B) 0 °C / (C) −20 °C / (D) −40 °C / (E) −60 °C / (F) −70 °C; High: 80 °C (80 °C ~ 150 °C optional)
Humidity Range — 20% ~ 98% R.H. (10–98% / 5–98% available as special optional condition with dehumidifier)
Indication Resolution / Distribution Uniformity — 0.1 °C; 0.1% R.H. / ±2.5 °C; ±3.5% R.H.
Control Accuracy — ±0.5 °C; ±2.5% R.H.
Temperature Rising / Falling Velocity — Rising approx. 0.1 ~ 3.0 °C/min; Falling approx. 0.3 ~ 1.0 °C/min (faster rate optional)
Cooling System — Water-cooled or air-cooled
Compressor — Tecumseh or Bitzer
Protection Devices — Fuse-free switch; compressor overload protection; high/low coolant voltage protection; over-humidity & over-temperature protection; fuses; fault warning and water shortage warnings
Optional Accessories — Slope for cart; recorder; water purifier; dehumidifier
Power — AC 380 V (±10%), 50/60 Hz, 3-phase 5-wire

Inner dimensions, temperature and humidity ranges and special requirements can be customized. Laboratory floor loading capacity: 600 kg/m² (uniform load).

Technical characteristics / specifications

• Series: THR Series
• Model: THR-volume (low-temperature options A–F)
• Internal dimensions: customizable (factory direct)
• Temperature range: Low options A–F (up to −70 °C); High standard 80 °C, optional up to 150 °C
• Humidity range: 20%–98% R.H. (special options 10–98% / 5–98% with dehumidifier)
• Resolution / Uniformity: 0.1 °C; 0.1% R.H. / ±2.5 °C; ±3.5% R.H.
• Control accuracy: ±0.5 °C; ±2.5% R.H.
• Temperature change rates: rise 0.1–3.0 °C/min; fall 0.3–1.0 °C/min (optional faster)
• Cooling: water-cooled or air-cooled; compressors by Tecumseh or Bitzer
• Protection: multiple independent protections (power, compressor, over-temp, over-humidity, water shortage, etc.)
• Power requirement: AC 380 V (±10%), 50/60 Hz, 3-phase 5-wire
• Floor loading capacity: 600 kg/m² (uniform)
• Data & control: PID control, programmable profiles, USB data export
