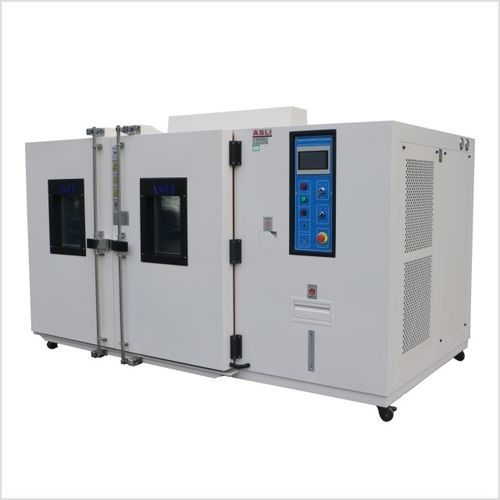

Climate chamber THR

thermostatictemperaturehumidity

Overview

Product summary: ASLI walk-in climate chambers (THR Series) provide large-capacity environmental test space for whole-product aging, reliability and combined temperature–humidity tests. Available as modular foam-panel assemblies or fully welded solid rooms to suit site, thermal load and change-rate requirements.

Drive-In climate Chambers (THR Series) — key capabilities

Key capabilities: Integrated piping and ducting, touchscreen controller with PLC, configurable room dimensions to match DUT and lab layout. Commonly used in electronics, automotive, LED, PCB and home-appliance testing where whole-product exposure and cart access are required.

Specifications (select)
Model — THR Series (THR-volume with low-temperature options A–F)
Internal dimensions — factory-direct; customizable to product and site
Temperature range — Low: A 25 °C / B 0 °C / C −20 °C / D −40 °C / E −60 °C / F −70 °C; High: standard 80 °C (option 80 °C–150 °C)
Humidity range — 20%–98% R.H. (special options 10%–98% or 5%–98% with dehumidifier)
Resolution / uniformity — indication 0.1 °C; 0.1% R.H. / distribution ±2.5 °C; ±3.5% R.H.
Control accuracy — ±0.5 °C; ±2.5% R.H.
Temperature change rates — rise approx. 0.1–3.0 °C/min; fall approx. 0.3–1.0 °C/min (faster rates optional)
Cooling system — water-cooled or air-cooled
Compressors — Tecumseh (France) or Bitzer (Germany)
Protection devices — fuse-free switch, compressor overload protection, high/low coolant voltage protection, over-humidity and over-temperature protection, fault warning system, water shortage alerts
Optional accessories — cart slope, recorder, water purifier, dehumidifier
Power — AC 380 V (±10%), 50/60 Hz, 3-phase 5-wire

Features

• Customizable internal dimensions to match DUT and laboratory layout.
• Six low-temperature grades (A–F) down to −70 °C; high-temperature option up to 150 °C.
• Walk-in/drive-in access for whole-product or cart testing without disassembly.
• Multi-layer safety protections for power, motor, compressor, heater and water supply.

Built-in functions / Key features

• PID temperature and humidity control for stable regulation.
• Programmable profiles: 100 patterns × 999 segments, with ramp-rate control.
• Real-time humidity sensor for closed-loop control.
• Independent overheat thermostat cut-off.
• 50 mm cable test port for routing cables to DUT during tests.
• USB data export for test records.
• Double-glazed heated observation window with interior lighting (sweat-proof).
• External water supply for humidifier refill and automatic recycle.

Standards

• IEC 68-2-1 (Cold)
• IEC 68-2-2 (Dry Heat)
• IEC 68-2-3 (Damp Heat — Steady State)
• IEC 68-2-30 (Damp Heat — Cyclic)
• IEC 68-2-14 (Change of Temperature)
• MIL-STD-810G / MIL-STD-810F (Environmental Test)
• ISO 16750-3 (Road Vehicles — Mechanical Loads)

Safety / Protection

• Grounding protection
• Leakage and breakage protection
• Heater short-circuit protection
• Blower motor overload protection
• Refrigeration over-voltage and overload protection
• Water shortage alarm

On-site installation & commissioning

• Site layout and utilities planning, chamber assembly and connection, temperature and humidity calibration, operator training and handover.

Deliverables & service

• Installation and operation manual with wiring diagrams and start-up checklist.
• Export packing list and shipping documents.
• 12-month warranty covering chamber, refrigeration system and controller; lifetime remote technical support; extended warranty available.
• Typical lead time for customized walk-in chambers: 30–40 working days from confirmed drawings.

Applications

• Computers & monitors
• Printers & office equipment
• LED & PCB assemblies
• Automotive components
• Home appliances
• Electronics & telecommunications
• Research & university labs
• Testing & certification bodies

FAQ — Selected factual answers

• Can internal dimensions be customized? Yes—internal dimensions, temperature range, humidity range and special requirements are configurable.
• Which low-temperature grade to choose? Grades A–F correspond to low limits from 25 °C down to −70 °C; high-temperature options available up to 150 °C.
• What is laboratory floor loading requirement? Uniform load capacity: 600 kg/m².
• What is the lead time? Typical lead time for custom walk-in chambers: 30–40 working days after drawings confirmation.
• What warranty is included? 12-month warranty plus lifetime remote technical support; extended warranty available.

Technical specifications (summary)

• Model: THR Series (THR-volume with low-temperature options A–F)
• Internal dimensions: customizable (factory direct)
• Temperature range: A 25 °C; B 0 °C; C −20 °C; D −40 °C; E −60 °C; F −70 °C; High standard 80 °C (option to 150 °C)
• Humidity range: 20%–98% R.H. (options: 10%–98% / 5%–98% with dehumidifier)
• Resolution / uniformity: 0.1 °C; 0.1% R.H. / ±2.5 °C; ±3.5% R.H.
• Control accuracy: ±0.5 °C; ±2.5% R.H.
• Temperature change rates: rise 0.1–3.0 °C/min; fall 0.3–1.0 °C/min (faster optional)
• Cooling: water-cooled or air-cooled
• Compressors: Tecumseh (France) or Bitzer (Germany)
• Protections: multi-layer (power, motor, compressor, heater, water supply, over-temperature, leakage)
• Optional accessories: cart slope, recorder, water purifier, dehumidifier
• Power supply: AC 380 V (±10%), 50/60 Hz, 3-phase 5-wire
• Laboratory floor loading: 600 kg/m² (uniform load)
