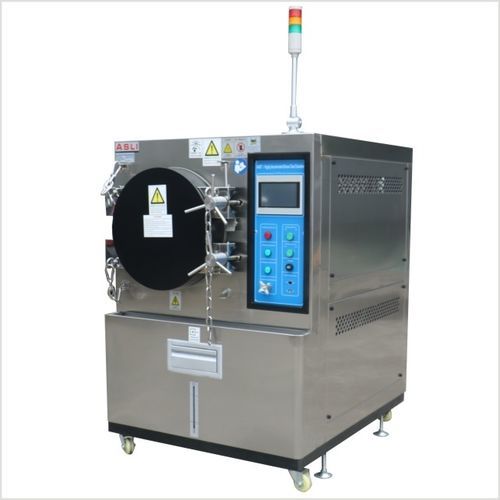

Thermostatic test chamber Hast series

climatictemperaturepressure

Product overview
HAST (Highly Accelerated Stress Test) chamber designed to evaluate electronic components and semiconductor packages under combined pressure, temperature and humidity conditions (typically 70%–100% RH, saturated steam). The chamber simulates harsh environments to assess moisture resistance, delamination risk, metallization corrosion and electrical failures in PCBs, FPCs and semiconductor packages.

Standards
Complies with JESD22-A110 standard.

Combined test types

• Saturated HAST: typically at 121°C with 100% RH (saturated steam).
• Unsaturated HAST: typically at 110°C / 120°C / 130°C with humidity around 70%–85% RH.

Safety features

• Inner-box interlock: prevents start if the inner box is not properly closed.
• Safety valve: automatic pressure relief when internal pressure exceeds safe value.
• Double overheat protection: alarm and automatic cut-off of heating power if inner-box temperature is excessive.
• Cover protection: inner-box cover in aluminium alloy to protect operators from scalding.

Technical specifications

• Models: HAST - 35; HAST - 45; HAST - 55
• Internal dimension Φ x D (mm): HAST-35 = 350 x 450; HAST-45 = 450 x 550; HAST-55 = 550 x 650
• External dimension (mm): HAST-35 = 900 x 1350 x 900; HAST-45 = 1000 x 1480 x 1000; HAST-55 = 1150 x 1650 x 1200
• Steam temperature range: 100°C – 135°C (143°C optional)
• Steam humidity: 70 – 100% RH (adjustable)
• Recirculation: forced steam circulation for uniform conditions
• Safety protective devices: low-water protection; over-pressure protection; automatic/manual water replenishing; automatic pressure discharge
• Accessories: two-layer stainless steel tray
