Product Overview

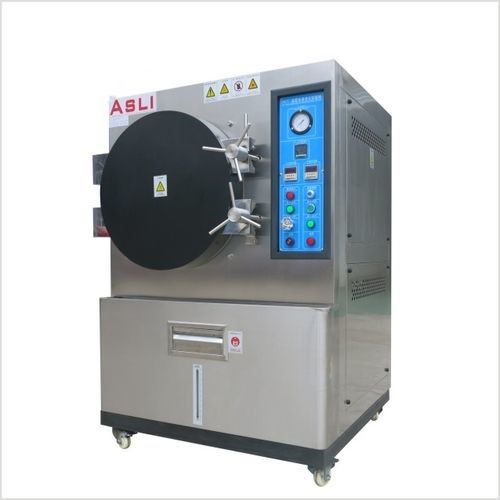

HAST PCT Unsaturated High Pressure Accelerated Environmental Aging Chamber is designed for evaluating sealing, pressure resistance and air-tightness of multilayer PCB assemblies, IC sealed packages, LCD panels, LEDs, semiconductors, magnetic materials (NdFeB, rare earths, magnet iron) and similar components. Available in multiple internal capacities for lab and production testing.

Control System

• Micro-computer saturated-steam LED digital temperature controller, LED digital time controller and pointer-type pressure gauge.
• System complies with high-pressure accelerated aging reliability standards: CNS, ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL, MIL.
• Control architecture: micro-computer + P.I.D. + S.S.R.; automatic saturated-steam temperature calculation.
• Micro-computer based control with user-friendly interface.
• Temperature control accuracy: ±0.5ºC; resolution: 0.1ºC.
• Pressure control accuracy: ±0.2 Kg/cm2.

Performance

• Temperature range (saturated steam): (RT + 10ºC) ~ 135ºC (143ºC optional).
• Humidity range: default saturated steam 100% RH; steam humidity adjustable 70–100% RH.
• Pressure range (absolute): 0.5 Kg/cm2 ~ 3.0 Kg/cm2 (standard safe capacity 3.0 Kg/cm2 = 1 atm + 2.0 Kg/cm2).
• Time range: 0 ~ 999 H/M/S, freely configurable.
• Temperature uniformity: ±2.0ºC at 100ºC.
• Temperature rise time: (RT + 10ºC) ~ 120ºC in approx. 45 minutes.
• Pressure build time: ambient/0.0 Kg/cm2 ~ 1.00 Kg/cm2 in approx. 45 minutes.

Technical Parameters (table)
Internal Dimension Φ×D (mm): 300×250 | 350×450 | 450×550 | 550×650 | 650×750
External Dimension Φ×D (mm): 850×1300×900 | 900×1350×900 | 1000×1480×1000 | 1150×1650×1200 | 1300×1800×1350
Steam Temperature Range: 100ºC ~ 135ºC (143ºC optional)
Relative Pressure / Absolute Pressure: relative pressure = gauge display; absolute pressure = gauge value + 100 kPa (actual internal value)
Comparison Table of Temperature, Humidity, Pressure: see product specification images
Steam Humidity: 70~100% R.H., adjustable
Steam Pressure (Absolute): 101.3 kPa +0.0 Kg/cm2 ~ 2.0 Kg/cm2 (3.0 Kg/cm2 special standard optional)
Recirculation: forced steam circulation
Safety devices: water shortage protection; over-pressure protection; automatic/manual water replenishment; automatic pressure discharge
Accessories: two-layer stainless steel shelf/plate
Equipment Capacity (L): 17 | 43 | 87 | 155 | 250
Power: AC220V, 1∮ 3 lines, 50/60Hz; AC380V, 3∮ 5 lines, 50/60Hz

Characteristics / Technical specifications

• Product name: HAST PCT Unsaturated High Pressure Accelerated Environmental Aging Chamber
• Control: Micro-computer + P.I.D. + S.S.R.; LED digital temperature & time controllers; pointer pressure gauge
• Temperature control accuracy: ±0.5ºC; resolution: 0.1ºC
• Temperature range: (RT + 10ºC) to 135ºC (143ºC optional)
• Steam humidity: 70–100% R.H. (adjustable); default saturated steam = 100% RH
• Pressure range: 101.3 kPa +0.0 Kg/cm2 ~ 2.0 Kg/cm2 (3.0 Kg/cm2 optional)
• Temperature uniformity: ±2.0ºC at 100ºC
• Capacity options: 17 L, 43 L, 87 L, 155 L, 250 L
• Internal/external dimension options available (see table)
• Safety: water shortage protection, over-pressure protection, automatic/manual water replenishment, automatic pressure discharge
• Power supply options: AC220V (single phase) or AC380V (three phase)
• Compliance: designed to meet reliability test requirements such as CNS, ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL, MIL (depending on configuration)
