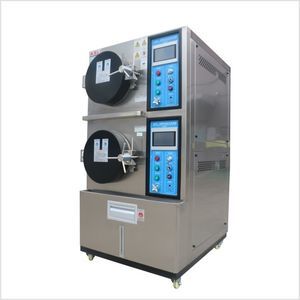

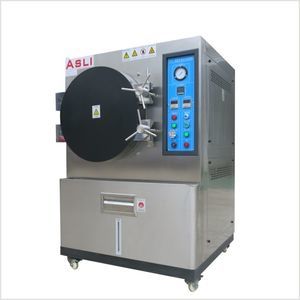

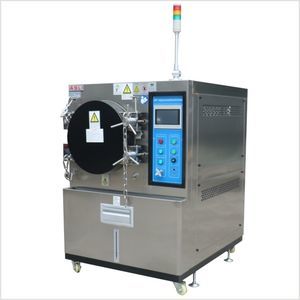

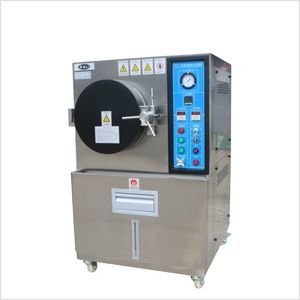

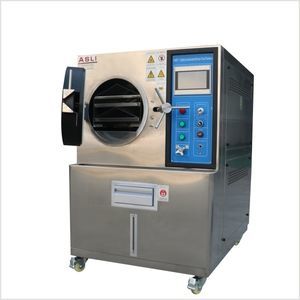

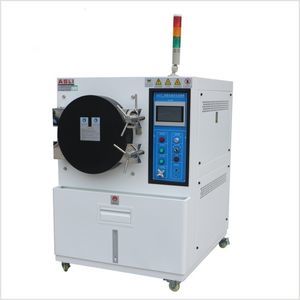

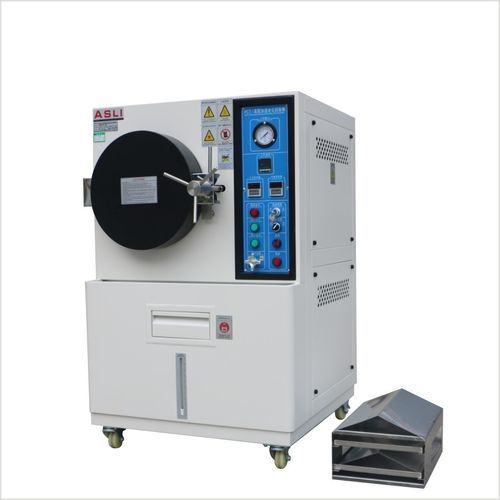

Thermostatic test chamber HAST series

climaticpressurehumidity

Product overview
A HAST/PCT chamber for accelerated steam and pressure aging tests. Designed for fast reliability evaluation of sealing and pressure-resistance properties of multilayer PCBs, IC packages, LCD/LED displays, semiconductors, magnetic materials (NdFeB), rare-earth materials and magnetic iron.

Control system

• Microcomputer-based saturated-steam temperature controller with LED display, LED digital time controller and analog pointer pressure gauge.
• Compliant with high-pressure accelerated aging test standards: CNS, ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL, MIL.
• Control architecture: microcomputer + PID + SSR with automatic saturated-steam temperature calculation.
• Temperature control accuracy: ±0.5°C; resolution: 0.1°C.
• Pressure control accuracy: ±0.2 Kg/cm².

Performance

• Temperature range (saturated steam): (RT + 10°C) up to 135°C (143°C optional).
• Humidity: up to 100% RH (saturated steam default).
• Pressure range (absolute): ~0.5 Kg/cm² to 3.0 Kg/cm² (3.0 Kg/cm² available as special option).
• Time range: 0 ~ 999 H/M/S, configurable.
• Temperature uniformity: ±2.0°C (at 100°C).
• Typical temperature rise: (RT + 10°C) to 120°C in ≈45 minutes.
• Typical pressurization time: ambient to ~1.00 Kg/cm² in ≈45 minutes.

HAST technical parameters
Model: HAST-25 | HAST-35 | HAST-45 | HAST-55 | HAST-65
Internal dimension Φ×D (mm): 300×250 | 350×450 | 450×550 | 550×650 | 650×750
External dimension (mm): 850×1300×900 | 900×1350×900 | 1000×1480×1000 | 1150×1650×1200 | 1300×1800×1350
Steam temperature range: 100°C ~ 135°C (143°C optional)
Steam humidity: 70% ~ 100% RH (adjustable)
Steam pressure (absolute): 101.3 kPa +0.0 Kg/cm² ~ 2.0 Kg/cm² (3.0 Kg/cm² special option)
Pressure indication: gauge shows relative pressure; absolute pressure = gauge value + 100 kPa (actual internal value).
Recirculation: forced steam circulation
Safety devices: low-water protection; overpressure protection; auto/manual water refill; automatic pressure discharge
Accessories: two-layer stainless-steel lining
Capacity (L): 17 | 43 | 87 | 155 | 250
Power: AC 220V (±10%), single-phase; AC 380V (±10%), three-phase (for larger configurations)


PCT technical parameters
Model: PCT-25 | PCT-35 | PCT-45 | PCT-55 | PCT-65
Internal dimension Φ×D (mm): 300×250 | 350×450 | 450×550 | 550×650 | 650×750
External dimension (mm): 750×1200×800 | 800×1250×800 | 900×1380×900 | 1050×1550×1100 | 1200×1700×1250
Operating saturated-steam temperature: 100°C ~ 135°C; examples: 120°C @ 100 kPa / 133°C @ 200 kPa (143°C special order)
Steam humidity: 100% RH (saturated steam)
Steam pressure (absolute): 101.3 kPa +0.0 Kg/cm² ~ 2.0 Kg/cm² (3.0 Kg/cm² special option)
Pressure indication: gauge shows relative pressure; absolute pressure = gauge value + 100 kPa (actual internal value).
Recirculation: natural convection steam circulation (PCT models)
Safety devices: low-water protection; overpressure protection; auto/manual water refill; automatic pressure discharge
Accessories: two-layer stainless-steel lining
Capacity (L): 17 | 43 | 87 | 155 | 250
Power: AC 220V (±10%), single-phase


Technical characteristics / specifications

• Product family: HAST (forced-circulation) and PCT (natural-convection) chambers for accelerated pressure/steam aging reliability testing.
• Main applications: sealing and air-tightness testing of multilayer PCBs, IC packages, LCD/LED, semiconductors, magnetic materials (NdFeB), rare-earth materials and magnetic iron.
• Control: microcomputer + PID + SSR; LED displays for temperature and time; analog pressure gauge.
• Key performance: temperature control ±0.5°C, resolution 0.1°C, uniformity ±2.0°C (100°C).
• Steam temperature range up to 135°C (143°C optional); humidity up to 100% RH; absolute pressure approx. 0.5 ~ 3.0 Kg/cm² (3.0 special option).
• Capacities: 17, 43, 87, 155, 250 L.
• Construction: two-layer stainless-steel interior.
• Safety: low-water alarm/protection, overpressure protection, auto/manual water replenishment, automatic pressure discharge.
• Power options: AC 220V (±10%) single-phase; AC 380V (±10%) three-phase for larger units.
