Climate chamber PCT series

thermostatictemperaturehumidity

Product description
The pressure-accelerated PCT JESD22-A101 environmental aging test chamber is designed to evaluate product performance under combined high temperature, high humidity and pressure conditions. It is intended for electrical and electronic products, components, parts, materials and metallic materials. The chamber simulates storage, transport and operating environments to test physical properties and other related characteristics for design verification, improvement and delivery inspection. It is also used for seal performance and accelerated life testing of related products.

What is the JESD22-A110 test?
JESD22-A110: Highly Accelerated Stress Test for Temperature and Humidity (HAST) is performed to assess the reliability of nonhermetic packaged devices in humid environments.

Standards supported
Supported standards: JESD22-A101, JESD22-A102-E, JESD22-A102-C.

Applications
Evaluation of pressure resistance and air-tightness for multilayer printed circuit boards, integrated circuit packages, LCDs, LEDs, semiconductors, magnetic materials (NdFeB, rare-earth and iron magnets) and related products.

Product parameters
Model: PCT - 25 | PCT - 35 | PCT - 45 | PCT - 55 | PCT - 65
Inner dimension Φ×D (mm): 300×250 | 350×450 | 450×550 | 550×650 | 650×750
Outer dimension Φ×D (mm): 750×1200×800 | 800×1250×800 | 900×1380×900 | 1050×1550×1100 | 1200×1700×1250
Vapor temperature range (operating temperature): saturated vapor temperature range: 100°C ~ 135°C. Operating points: 120°C at 100 Kpa; 133°C at 200 Kpa; 143°C optional.
Relative pressure / Absolute pressure: Relative pressure indicated on gauge. Absolute pressure = gauge reading + 100 Kpa (actual internal value).
Saturated vapor humidity: 100% R.H. for PCT chamber; 70–100% R.H. adjustable for HAST chamber.
Vapor pressure (absolute): 101.3 Kpa +0.0 kg/cm² ~ 2.0 kg/cm²; (3.0 kg/cm² optional).
Recirculation device: Natural convection vapor circulation.
Safety protection: Short water storage protection, overpressure protection; automatic/manual water refill; automatic pressure discharge.
Accessories: Double-layer stainless steel plate.
Capacity (liters): 17 | 43 | 87 | 155 | 250.
Power supply: AC 220 V 50/60 Hz.

Detailed photos

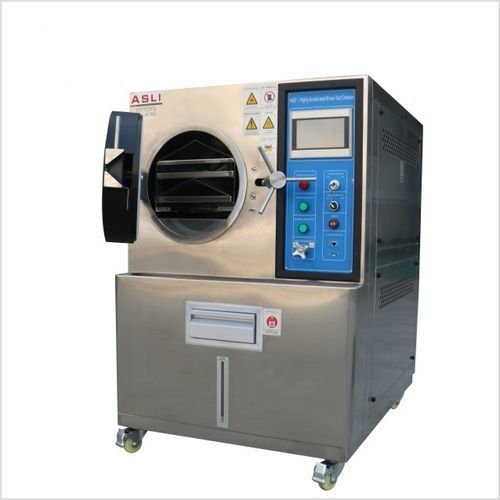

Product images include the chamber, sample shelves and electrical terminals as visual references for the described features.

Main features

• Automatic water replenishment and fill function for short water storage during tests.
• Automatic operation for completed tests; simple user interface and handling.
• Temperature control: digital LED controller for accurate setting, control and display of temperature.
• Digital LED timer that starts timing when the set temperature is reached.
• Accurate pressure: pressure and relative humidity display on the control panel.
• Automatic discharge of non-saturated vapor to obtain improved vapor quality.
• Integrated silica gel door gasket for high tightness and long service life.
• Mirror-polished inner chamber for cleanliness and reduced contamination.

Safety devices

• Start safety: the machine will not start if the inner chamber door is not closed.
• Safety relief valve that automatically vents if pressure exceeds the set value.
• Dual overheating protection: alarm and automatic cut-off of heating power if temperature is too high.
• Aluminum alloy cover for burn protection.

Packing
Standard packing: first PP film, then 10 mm foam between the machine and the crate; standard exterior packaging.

Manufacturer profile
Manufacturer with extensive experience in environmental and vibration test equipment; over 26 years in the industry. The pressure-accelerated PCT environmental aging test chamber is a flagship product and holds CE certification.

Features / Technical specifications

• Model series: PCT series.
• Available inner dimensions: from 300×250 mm to 650×750 mm (capacities 17 to 250 L).
• Saturated vapor temperature range: 100°C ~ 135°C; operation options: 120°C (100 Kpa), 133°C (200 Kpa), 143°C optional.
• Operational absolute pressure up to 2.0 kg/cm² (3.0 kg/cm² optional).
• Vapor humidity: 100% R.H. for PCT; 70–100% R.H. adjustable for HAST.
• Vapor generation and recirculation by natural convection; discharge of non-saturated vapor.
• Digital LED control for temperature and timer; pressure and humidity display.
• Power supply: AC 220 V 50/60 Hz.
• Standard accessory: double-layer stainless steel plate.
• Safety systems: inner door closure detection, overpressure relief valve, dual overheat protection, protective cover.
• Certification: CE.
