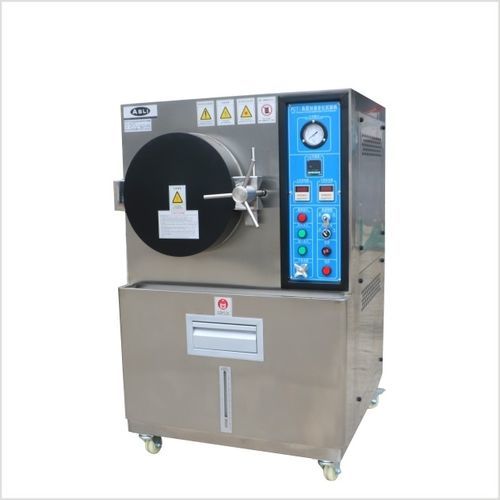

Thermostatic test chamber PCT seriesclimaticpressurevolume
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic, climatic
- Controlled parameter
- pressure, volume, temperature, humidity
- Test type
- aging, boiling, HAST, corrosion
- Application domain
- for the aeronautical industry
- Configuration
- floor-standing
- Chamber material
- stainless steel
- Options and accessories
- with temperature and climatic control
- Other characteristics
- stainless steel, for high temperatures, natural convection
- Capacity
Max.: 250 l
(66.04 gal)Min.: 17 l
(4.49 gal)- Temperature
Max.: 135 °C
(275 °F)Min.: 100 °C
(212 °F)- Interior length
Max.: 650 mm
(25.59 in)Min.: 300 mm
(11.81 in)- Interior depth
Max.: 750 mm
(29.53 in)Min.: 250 mm
(9.84 in)- External length
Max.: 1,200 mm
(47.2 in)Min.: 750 mm
(29.5 in)- External height
Max.: 1,700 mm
(66.93 in)Min.: 1,200 mm
(47.24 in)- External depth
Max.: 1,250 mm
(49.21 in)Min.: 800 mm
(31.5 in)
Description
Description
A PCT (Pressure Cooker Test) chamber is an industrial test enclosure that exposes material samples to high-temperature, high-pressure saturated steam to evaluate resistance to moisture, corrosion and adhesion degradation. It reproduces accelerated aging conditions encountered in sectors such as automotive, aerospace and electronics.
Product parameters
Model: PCT-25; PCT-35; PCT-45; PCT-55; PCT-65
Interior dimension (Φ×D mm): 300×250; 350×450; 450×550; 550×650; 650×750
Exterior dimension (mm): 750×1200×800; 800×1250×800; 900×1380×900; 1050×1550×1100; 1200×1700×1250
Steam temperature (saturated): 100°C–135°C (examples: 120°C @100 Kpa; 133°C @200 Kpa; 143°C optional)
Relative / absolute pressure: gauge shows relative pressure; absolute pressure = gauge value + 100 Kpa
Steam humidity: 100% R.H. (PCT); 70–100% R.H. adjustable for HAST variants
Steam absolute pressure range: 101.3 Kpa +0.0 ~ 2.0 Kg/cm² (3.0 Kg/cm² optional)
Circulation: natural convection steam circulation
Safety devices: low-water protection, over-pressure protection, automatic/manual water replenishment, automatic pressure discharge
Accessories: two-layer stainless steel shelves
Capacities: 17 L; 43 L; 87 L; 155 L; 250 L
Power supply: AC 220V 50/60Hz
Applications
Used for accelerated corrosion and moisture-resistance testing of coatings, sealants and adhesives on metal substrates; qualification and R&D of electronic components sensitive to humidity; applicable industries: automotive, aerospace, electronics and coatings manufacturing.
Technical specifications
A PCT (Pressure Cooker Test) chamber is an industrial test enclosure that exposes material samples to high-temperature, high-pressure saturated steam to evaluate resistance to moisture, corrosion and adhesion degradation. It reproduces accelerated aging conditions encountered in sectors such as automotive, aerospace and electronics.
Product parameters
Model: PCT-25; PCT-35; PCT-45; PCT-55; PCT-65
Interior dimension (Φ×D mm): 300×250; 350×450; 450×550; 550×650; 650×750
Exterior dimension (mm): 750×1200×800; 800×1250×800; 900×1380×900; 1050×1550×1100; 1200×1700×1250
Steam temperature (saturated): 100°C–135°C (examples: 120°C @100 Kpa; 133°C @200 Kpa; 143°C optional)
Relative / absolute pressure: gauge shows relative pressure; absolute pressure = gauge value + 100 Kpa
Steam humidity: 100% R.H. (PCT); 70–100% R.H. adjustable for HAST variants
Steam absolute pressure range: 101.3 Kpa +0.0 ~ 2.0 Kg/cm² (3.0 Kg/cm² optional)
Circulation: natural convection steam circulation
Safety devices: low-water protection, over-pressure protection, automatic/manual water replenishment, automatic pressure discharge
Accessories: two-layer stainless steel shelves
Capacities: 17 L; 43 L; 87 L; 155 L; 250 L
Power supply: AC 220V 50/60Hz
Applications
Used for accelerated corrosion and moisture-resistance testing of coatings, sealants and adhesives on metal substrates; qualification and R&D of electronic components sensitive to humidity; applicable industries: automotive, aerospace, electronics and coatings manufacturing.
Technical specifications
- Series: PCT series
- Interior dimensions (Φ×D mm): models from 300×250 to 650×750
- Exterior dimensions (mm): models from 750×1200×800 to 1200×1700×1250
- Saturated steam temperature range: 100°C–135°C (operational examples: 120°C @100 Kpa; 133°C @200 Kpa; 143°C optional)
- Steam humidity: 100% R.H. (PCT); 70–100% R.H. adjustable (HAST)
- Steam absolute pressure: typically 101.3 Kpa up to 2.0 Kg/cm² (3.0 Kg/cm² optional)
- Circulation method: natural convection
- Safety features: low-water detection, over-pressure protection, automatic/manual water refill, automatic pressure discharge
- Internal accessories: two-layer stainless steel plates
- Available capacities: 17 L, 43 L, 87 L, 155 L, 250 L
- Power supply: AC 220V 50/60Hz
