gas pump / electric / diaphragm / industrial
E-Series Dia-Vac



  • Media:

    for gas

  • Operation:


  • Type:


  • Domain:


  • Other characteristics:

    explosion-proof, ATEX

  • Flow:

    Max.: 150 l/min (39.6258 us gal/min)

    Min.: 0 l/min (0 us gal/min)

  • Pressure:

    Max.: 15 psi

    Min.: 0 psi


Category: ALL NEW! E-Series Dia-Vac® | 150 SLPM

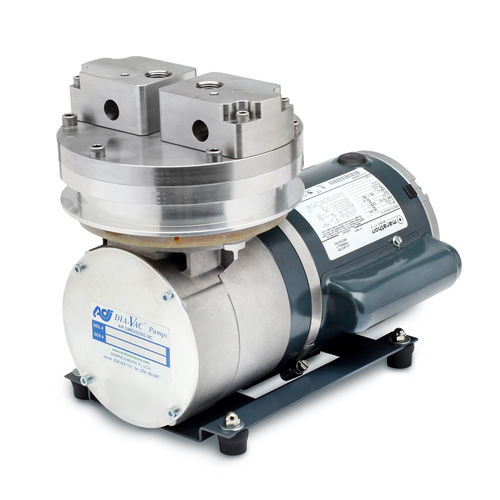

The E-Series Dia-Vac® pump is the highest capacity pump ever offered by ADI in our 41 year history. Providing optimum response time, with minimal maintenance. The newest addition to our line of ultra high quality diaphragm pumps is available with UL/CSA, ATEX, IECEx, and GOST Explosion proof options, as well as General Purpose. Heated and Elevated options are expected to be introduced later in 2013. Maximum performance range: 0-150 LPM, 0-23Hg, and 0-15 PSIG.
