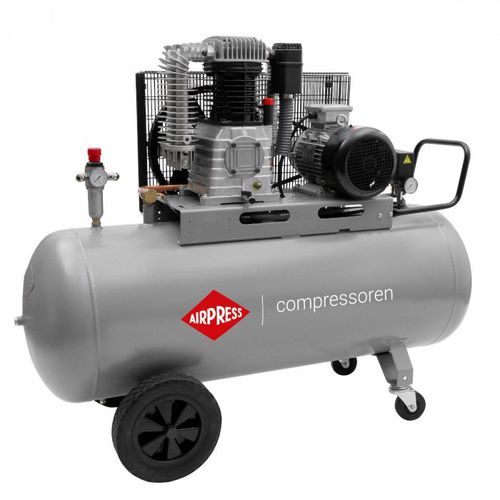

Piston compressor HK 1000-270
airelectricstationary

Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary - image - 2
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary - image - 3
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary - image - 4
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary - image - 5
Piston compressor - HK 1000-270  - AIRPRESS - air / electric / stationary - image - 6
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Applications
tank
Voltage
400 V
Other characteristics
belt-driven
Tank volume

270 l
(71.3 gal)

Pressure

11 bar
(159.54 psi)

Flow

665 l/min
(175.67 us gal/min)

Power

5.5 kW
(7.48 hp)

Length

1,640 mm
(64.57 in)

Width

560 mm
(22.05 in)

Height

1,330 mm
(52.36 in)

Weight

148 kg
(326.3 lb)

Noise level

52 dB, 57 dB, 77 dB

Description

HK 1000-270 Pro double piston compressor is a highly efficient device with a power of 7.5 HP and a tank capacity of 270 l, designed for intensive work in industrial and workshop environments. It provides a stable pressure of up to 11 bar and an air flow of 665 l/min, which makes it an ideal choice for users requiring durability, efficiency and reliability with high demand for compressed air. The HK 1000-270 Pro compressor is a durable and efficient piston compressor designed for professional workshops, service establishments and smaller industrial plants. Equipped with a 7.5 HP (5.5 kW) motor, 400V three-phase power supply and a 270 l tank, this compressor offers exceptional stability and operating efficiency. The K30 compressor pump ensures high efficiency and durability, making this model ideal for intensive use. K30 compressor pump - durability and efficiency K30 compressor pump: Manufactured in the European Union, the K30 pump offers high efficiency at optimized rotational speed, which extends the service life and reduces component wear. Optimal rotation speed: A speed of 1200 rpm ensures stable compressor operation, minimizing the risk of overheating and enabling longer compression cycles. Advanced cooling: Oversized intercoolers and exhaust coolers effectively lower compressed air temperatures, and a cooling blade pulley supports the cooling system. Durability of components: Cast iron cylinders and a reinforced head ensure resistance to intensive use, which extends the life of the device. Advantages of the HK 1000-270 Pro compressor Ready for use: The compressor is equipped with a Condor pressure switch with thermal protection and a cable with an electric plug,
