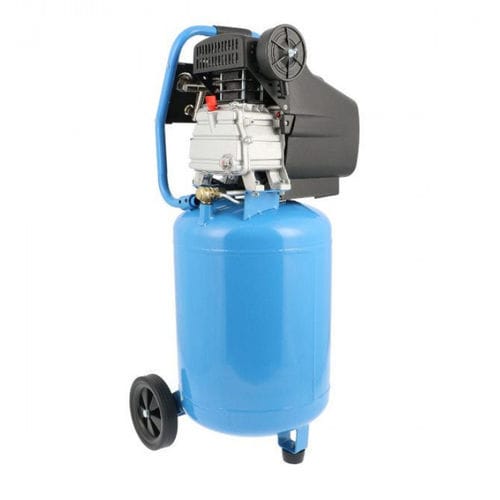

Piston compressor HL 360/50 series
airelectrically-poweredon casters

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
on casters
Lubrication
lubricated
Application domain
industrial
Other characteristics
vertical tank
Pressure

Min.: 6 bar (87.02 psi)

Max.: 8 bar (116.03 psi)

Flow

288 l/min (76.08 us gal/min)

Power

1.8 kW (2.45 hp)

Description

Properties Motor capacity (HP/kW) 2.5/1.8 Number of cylinders 1 Number of stages 1 Pump speed (RPM) 2800 Working pressure (bar) 6 Maximum pressure (bar) 8 Power supply (Volt/Hz/Ph) 230/50/1 Mains fuse (A, slow) 16 Power consumption (ca. kW) 2.7 Intake capacity (l/min) 360 Tank capacity (l) 50 Noise level Lwa (dB(A)) 90 Dimensions (l x w x h, cm) 48 x 41 x 105 Weight (kg) 38 EAN 13 Barcode 8712418191462
