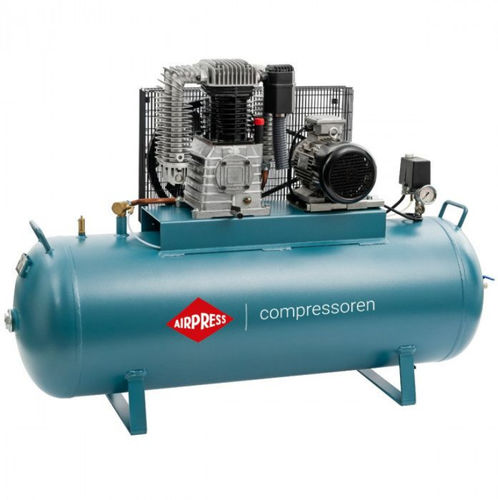

Piston compressor K series
airelectrically-poweredstationary

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
with tank
Pressure

Max.: 14 bar (203.05 psi)

Min.: 12 bar (174.05 psi)

Flow

935 l/min (247 us gal/min)

Power

7.5 kW (10.2 hp)

Description

Properties Motor capacity (HP/kW) 10.0/7.5 Number of cylinders 2 Number of stages 2 Pump speed (RPM) 1020 Switch-in pressure (bar) 10 Switch-off pressure (bar) 12 Maximum pressure (bar) 15 Power supply (Volt/Hz/Ph) 400/50/3 Power consumption (ca. kW) 10.0 Switch (1=direct/2=Y∆//3=freq) 2 RPM 1500 Tank capacity (l) 500 Noise level Lwa (dB(A)) 92 Dimensions (l x w x h, cm) 200 x 52 x 127 Weight (kg) 325 EAN 13 Barcode 8712418665185
