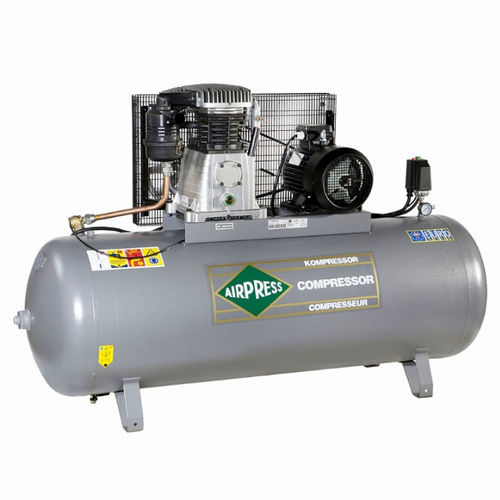

Piston compressor HK 1000/500 series
airelectrically-poweredstationary

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
with tank
Pressure

Max.: 10 bar (145.04 psi)

Min.: 8 bar (116.03 psi)

Flow

1,000 l/min (264.17 us gal/min)

Power

5.5 kW (7.48 hp)

Description

Motor capacity (HP/kW) 7.5/5.5 Power supply (Volt/Hz/Ph) 400/50/3 Switch (1=direct/2=Y∆//3=freq) 1 Number of cylinders 2 Number of stages 2 Pump speed (RPM) 1450 Tank capacity (l) 500 Intake capacity (l/min) 1000 Noise level Lwa (dB(A)) 82 Maximum pressure (bar) 10 Working pressure (bar) 8 Dimensions (l x w x h, cm) 200 x 52 x 118 Weight (kg) 280 EAN 13 Barcode 8712418264104
