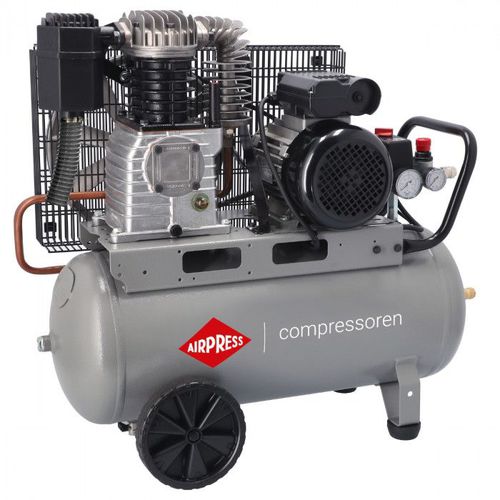

Piston compressor HL 425-50 Pro
airelectricstationary

Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary - image - 2
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary - image - 3
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary - image - 4
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary - image - 5
Piston compressor - HL 425-50 Pro - AIRPRESS - air / electric / stationary - image - 6
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Applications
motor, tank
Voltage
380 V
Other characteristics
compact, belt-driven
Tank volume

50 l
(13.2 gal)

Pressure

10 bar
(145.04 psi)

Flow

317 l/min
(83.74 us gal/min)

Power

2.2 kW
(2.99 hp)

Length

780 mm
(30.71 in)

Width

410 mm
(16.14 in)

Height

740 mm
(29.13 in)

Weight

53 kg
(116.8 lb)

Noise level

72 dB, 77 dB, 97 dB

Description

HL 425-50 Pro two-piston compressor is a compact and efficient model with a power of 3 HP and a tank capacity of 50 l, ensuring a maximum pressure of 10 bar and an air flow of 317 l/min. It is ideal for workshops and home work where reliability and efficiency with intensive use are required. The HL 425-50 Pro compressor is a compact, efficient piston device, designed for intensive work in workshops and service establishments. Equipped with a 3 HP (2.2 kW) engine and a 50 l tank, this compressor is perfect for tasks requiring mobility and reliability. The model equipped with a K17C compressor pump ensures high efficiency and durability in intensive use. K17C compressor pump - durability and efficiency K17C compressor pump: Manufactured in the European Union, the K17C pump offers high efficiency at optimized rotational speed, which increases durability and reduces component wear. Optimum rotation speed: A speed of 1250 rpm ensures stable and effective operation of the compressor, minimizing the risk of overheating during long-term use. Advanced cooling: Oversized intercoolers and exhaust coolers effectively lower compressed air temperatures, and a pulley with cooling blades supports the cooling system. Durability of components: Cast iron cylinders and a reinforced head guarantee resistance to intensive use, which significantly extends the life of the device.
