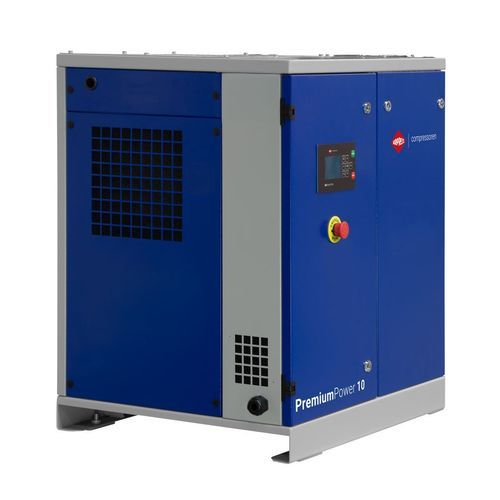

Screw compressor PremiumPower 10

airelectrically-poweredstationary

Product overview
The PremiumPower 10 is a variable-speed screw compressor engineered for industrial continuous operation. It integrates a next-generation high-efficiency screw airend, an IE5 permanent magnet synchronous motor, a modern inverter and the AirVision One controller to deliver energy-efficient, stable compressed air production with simple monitoring and control.

Key technical benefits

• Next-generation high-efficiency screw module (airend) — European design and manufacture to maximise airflow for a given input power.
• Direct driven 1:1 coupling — screw module connected directly to the motor; no gearbox, lower transmission losses.
• IE5 permanent magnet synchronous motor for ultra-premium efficiency.
• Integrated AirVision One controller — real-time monitoring, predictive diagnostics and simplified maintenance routines.
• Wide variable-speed range (IVR) — reduces speed at lower demand to save energy and reduce mechanical wear.
• Smooth starts from variable-speed control reduce stress on components and extend service life.
• Optimised total cost of ownership (TCO) across purchase, energy, consumables, service and downtime.

Additional advantages

• Energy optimisation via inverter control: automatic motor speed adjustment to match demand; potential up to 50% energy savings and ~30% lower lifecycle costs over five years.
• Low noise operation (approx. 60 dB(A)) thanks to radial fan design, enabling installation near point of use.
• Compact footprint for installation in confined technical rooms.

Smart monitoring with AirVision One
The AirVision One controller provides comprehensive oversight (pressure, temperature, load), automatic restart and weekly scheduling, plus intelligent cooling control to improve operational stability and support energy management.

Main technical benefits

• Easy integration with external sensors and plant equipment (air treatment, signalling).
• Intuitive interface with ergonomic navigation for operators.
• Performance graphs and statistics for trend analysis and service optimisation.
• Built-in web server for remote monitoring and diagnostics without extra modules.

Technical data (summary)
GENERAL PARAMETERS — INDIVIDUAL TECHNICAL DATA
Motor class: IE5
Power: 10 hp / 7.5 kW
Free air delivery (FAD) for min. pressure: 377 L/min (22.62 m3/h)
Free air delivery (FAD) for 8-bar pressure: 1250 L/min (75 m3/h)
Free air delivery (FAD) for 10-bar pressure: 1050 L/min
Minimum pressure: 6 bar
Maximum pressure: 10 bar
Operating noise: 60 dB(A)
Drive: Direct driven 1:1
Pump speed (RPM) at 8 bar: 960-2910 RPM
Pump speed (RPM) at 10 bar: 1280-3230 RPM

INSTALLATION DATA
Length: 840 mm
Width: 625 mm
Height: 870 mm
Weight: 172 kg
Main air connection: 1/2"
Power supply: 400 V / 50 Hz / 3 Ph

Optional equipment

• Controller Air Vision Touch (extended functionality): electricity consumption measurement; air temperature sensor; compressed air flow and consumption sensor; automatic condensate drain; pressure dew point (PDP) measurement.
• Plate heat exchanger.
• Oil heater.
• Food grade oil.

Specifications / technical details

• Model: PremiumPower 10
• Brand: Airpress
• SKU: 369410-IVR-G3
• EAN: 8712418439489
• Motor: IE5 permanent magnet synchronous motor (PM)
• Motor power: 10 hp / 7.5 kW
• Variable speed: Yes (IVR)
• Free air delivery (min): 377 L/min (22.62 m3/h)
• Free air delivery (8 bar): 1250 L/min (75 m3/h)
• Free air delivery (10 bar): 1050 L/min
• Minimum pressure: 6 bar
• Maximum pressure: 10 bar
• Noise level (0 m): 60 dB(A)
• Cooling air volume: 950 m3/h
• Drive: Direct driven 1:1
• Pump speed (8 bar): 960-2910 RPM; (10 bar): 1280-3230 RPM
• Dimensions (L×W×H): 840 × 625 × 870 mm
• Weight: 172 kg
• Main air connection: 1/2"
• Oil capacity: 4.6 L
• Voltage / plug / cable: 400 V / 50 Hz / 3 Ph; EURO 32A-5P; 4 x 2.5 mm²
• IP classification: IP55
• Duty cycle: 100% (continuous)
