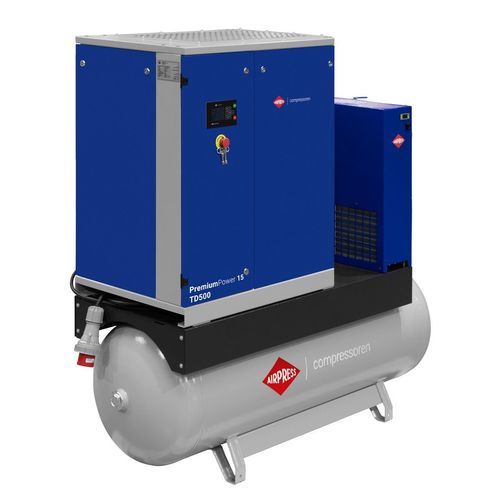

Air compressor unit PremiumPower 15 TD500

screwdirect-drivewith oil injection

Overview
The PremiumPower 15 TD500 is a variable-speed screw compressor with an integrated dryer and a 500-litre air tank, designed for high efficiency and low energy consumption. It is equipped with a high-performance screw block, IE5-class ultra-premium motor, a next-generation inverter, and an AirVision One controller. This combination ensures stable, energy-efficient operation and allows convenient monitoring and control of the entire compressed air production process. Ideal for daily operation in demanding industrial conditions.

Key technical benefits

• Integrated dryer – efficiently removes moisture from the air, protecting pneumatic systems and tools from corrosion and damage.
• 500-litre air tank – stabilises compressed air supply, eliminating pressure fluctuations and improving system efficiency.
• High-efficiency next-generation screw module (airend) – designed and manufactured in Europe, guarantees greater airflow with lower energy consumption.
• Direct driven 1:1 that directly connects the screw module to the motor – no need for gearboxes, reduction in energy losses and significantly improved compressor efficiency.
• Ultra Premium IE5 energy class permanent magnet synchronous motor.
• European AirVision One controller – monitors the operation in real-time, enabling predictive diagnostics, minimising downtime risks, and simplifying maintenance.
• Wide variable-speed range (IVR) thanks to integration of the screw block with the inverter – the compressor operates at lower speeds when air demand is reduced, saving energy and decreasing mechanical wear.
• IVR variable-speed technology for smooth starts that reduce stress, extend service life, and deliver energy savings under fluctuating air demand.
• Optimised total cost of ownership (TCO) – lower purchase cost impact over lifecycle due to energy savings, consumables, servicing, and reduced downtime.

Additional advantages

• Optimised energy consumption via the inverter which automatically adjusts motor speed to match air demand; up to 50% energy savings claimed and reduced total lifecycle costs (approx. 30% over five years).
• Quiet operation due to radial fan; noise level 63 dB(A), enabling installation close to point of use.
• Compact design for easy installation in confined spaces.

AirVision One controller for smart oversight
The AirVision One controller provides full oversight of compressor operation (pressure, temperature, load), automatic restart functions, weekly scheduling, intelligent cooling control, predictive diagnostics and remote monitoring via built-in web server. It supports integration with sensors and connected devices, and provides performance graphs and statistics for trend analysis and optimisation.

Main technical benefits (AirVision One)

• Easy integration with sensors and connected devices (e.g., air treatment, signalling).
• Intuitive interface with ergonomic navigation.
• Performance graphs and statistics for trend analysis and better optimisation of energy use and servicing.
• Built-in web server for remote monitoring and diagnostics without extra modules.

Technical data
GENERAL PARAMETERS — INDIVIDUAL TECHNICAL DATA
Motor class: IE5
Motor power: 15 hp / 11 kW
Free air delivery (min. pressure): 591 L/min
Free air delivery (8 bar): 1701 L/min
Free air delivery (10 bar): 1579 L/min
Minimum pressure: 6 bar
Maximum pressure: 10 bar
Operating noise: 63 dB(A)
Drive: Direct driven 1:1
Pump speed (RPM) at 8 bar: 1560 - 3960
Pump speed (RPM) at 10 bar: 1560 - 3600

INSTALLATION DATA
Length: 1945 mm
Width: 676 mm
Height: 1940 mm
Weight: 457 kg
Main air connection: 1"
Power supply: 400 V / 50 Hz / 3 Ph

Optional equipment

• Air Vision Touch controller (expands functionality): electricity consumption measurement system; air temperature sensor; compressed air flow and consumption sensor; automatic condensate drain; pressure dew point measurement (PDP).
• Plate heat exchanger
• Oil heater
• Food Grade oil

Caractéristiques / spécifications techniques

• Denomination commerciale: PremiumPower 15 TD500
• Marque: Airpress
• Modèle / SKU: 369213-IVR-G3
• EAN: 8712418441352
• Motor power: 15 hp / 11 kW
• Motor efficiency class: IE5 (PM motor)
• Variable speed (IVR): Yes
• Air-end: x11-g3
• Number of stages: 1
• Free air delivery (min): 591 L/min (35.46 m³/h)
• Free air delivery (8 bar): 1701 L/min (102.06 m³/h)
• Free air delivery (10 bar): 1579 L/min
• Operating range: 6–10 bar
• Noise level: 63 dB(A) (0 m)
• Air receiver: 500 L (integrated)
• Dryer: integrated (refrigerant R513A), dryer voltage 230 V
• Oil capacity: 8.1 L
• Cooling air volume: 1,400 m³/h
• Dimensions (L x W x H): 1945 x 676 x 1940 mm
• Weight: 457 kg
• Connection / plug type: 1" main air connection; plug EURO 32A-5P
• Power supply / Current: 400 V / 50 Hz / 3 Ph; current 18.7 A
• IP classification: IP55
