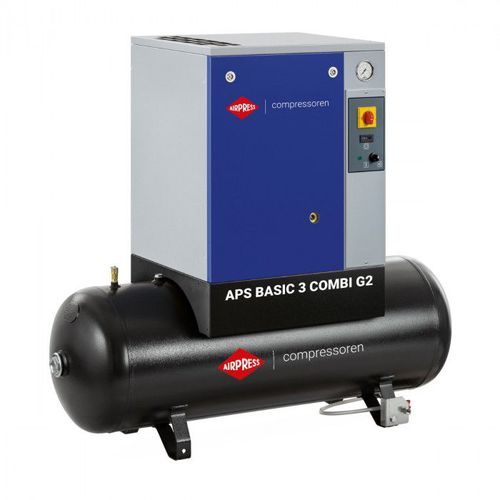

Screw compressor APS 3 Basic G2 Combi airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- lubricated
- Application domain
- industrial
- Applications
- tank
- Voltage
- 400 V
- Other characteristics
- tank-mounted, with refrigerant dryer, belt-driven
- Tank volume
200 l
(52.8 gal)- Pressure
10 bar
(145.04 psi)- Flow
294 l/min
(77.67 us gal/min)- Power
2.2 kW
(2.99 hp)- Length
1,430 mm
(56.3 in)- Width
600 mm
(23.62 in)- Height
1,260 mm
(49.61 in)- Weight
165 kg
(363.8 lb)- Noise level
41 dB, 61 dB
Description
Workload (labor/rest %) - 100/0
Motor efficiency class - IE3
Control panel - ON/OFF
Dryer - No
Air receiver - Yes
Galvanized tank - No
Main air connection (") - 3/4
Minimum ambient temperature (°C) - 5
Maximum ambient temperature (°C) - 40
Oilfree - No
Oil capacity (l) - 2.50
Air-end - C43
Stages - 1
Start - Direct
