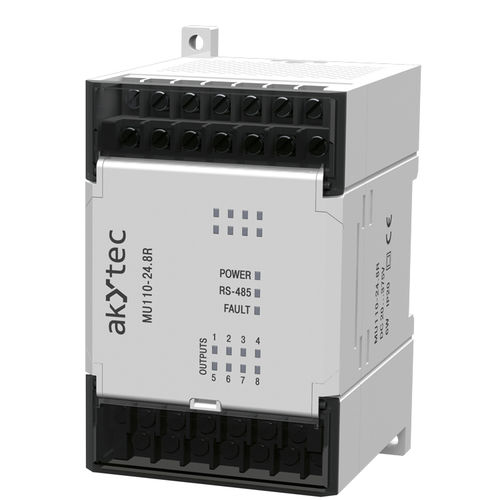

Digital output module MU110 series

Modbus RTUModbusRS485

Available modifications: MU110-24.8R — 8 Outputs: relays (NO), 4 A, 250 V AC or 24 V DC MU110-24.16R — 16 Outputs: relays (NO) 3 A at 250 V AC or 30 V DC MU110-24.32R — 32 Outputs: relays (NO) 3 A at 250 V AC or 30 V DC MU110-24.8K — 8 Outputs: NPN transistors, 400 mA, 60 V DC MU110-24.16K — 16 Outputs: NPN transistors, 400 mA, 60 V DC Key Technical Features: - Assorted Output Types: The MU110 series offers modules with relay (e.g., MU110-24.8R, MU110-24.16R) and NPN outputs (e.g., MU110-24.8K, MU110-24.16K), allowing for the management of different electrical loads and offering flexibility for diverse automation requirements. - Galvanic Isolation: Safety is enhanced with outputs that are galvanically isolated in groups of four, boosting the modules' reliability. - IP20 Enclosure: Each module is encased in an IP20-rated housing, ensuring operation in temperatures ranging from -20 to +55 °C and suitable for various environments. - Efficient Communication: Designed to operate through Modbus RTU/ASCII protocol, these modules support efficient and stable communication via the RS485 interface.
