Resistance temperature sensor TOP-W-12 seriesfor pipelineshigh-pressurerugged
Add to favorites
Compare this product
Characteristics
- Technology
- resistance
- Applications
- for pipelines
- Other characteristics
- rugged, high-pressure
- Temperature
Max.: 600 °C
(1,112 °F)Min.: -200 °C
(-328 °F)- Process pressure
40 MPa
Description

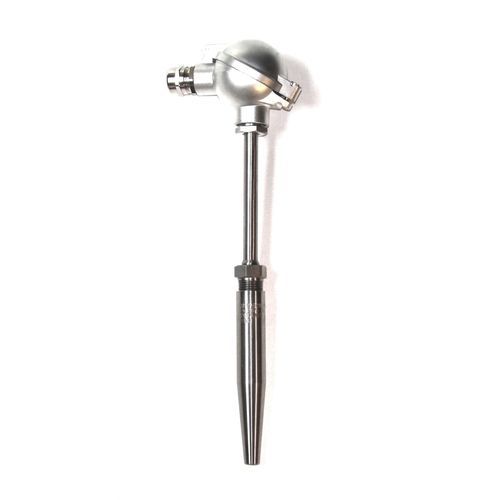

Resistance thermometer TOP-W-12 has been designed for rugged condition applications in pipelines and boilers, at operating temperature up to +600°C and operating pressure up to 40 Mpa.
Pressure resistant protection tube is made of boiler quality steel, which allows installation by welding. Resistance thermometer is equipped with replaceable sheathed, spring loaded measuring insert.
