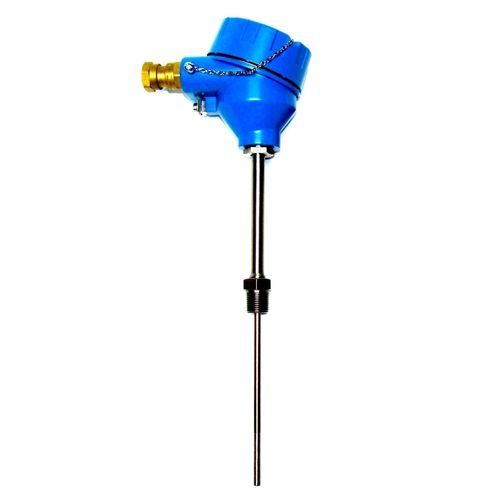

Resistance temperature sensor TOP-Exd-PKGz-236threadedterminal blockATEX
Add to favorites
Compare this product
Characteristics
- Technology
- resistance
- Mounting
- threaded
- Electrical connection
- terminal block
- Protection level
- ATEX, flameproof
- Other characteristics
- with thermowell, shockproof, cable
- Temperature
Min.: -200 °C
(-328 °F)Max.: 600 °C
(1,112 °F)
Description
Resistance thermometer type TOP-Exd-PKGz-236signed II 2 G Ex db IIC T* Gb has been designed for temperature measurement in explosion zone 1 or 2 of gases area and can work with non-intrinsic safe wire configuration.
Resistance thermometer type TOP-Exd-PKGz-236signed II 1/2 D ta IIIC T*ºC Da/Db for use in dust area with non-intrinsic safe wire configuration.
Thermometer is dedicated for mounting into existing thermowell in the installation.
Connection head is optionally equipped with 1 or 2 cable inserts, and with terminal block or transmitter.
Catalogs
TOP-Exd-PKGz-236
2 Pages
alf sensor
315 Pages
Other Alf-Sensor products
Flame-proof Sensors
