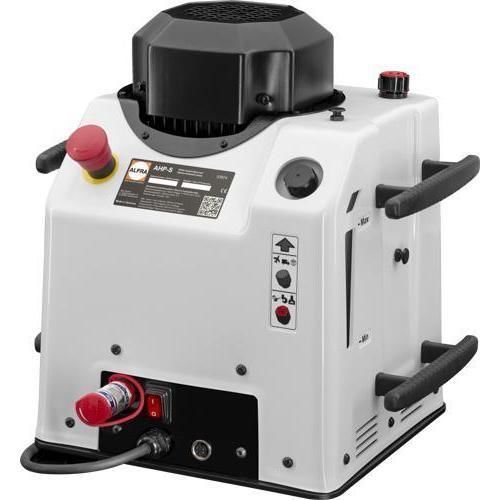

Electrically-powered hydraulic power unit AHP S

electric motorelectricfor cylinders

Product overview

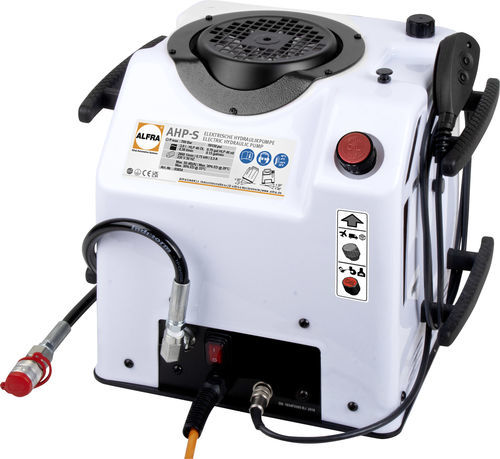

The AHP S from ALFRA / Rittal Automation Systems is an electro-hydraulic pump designed to power a range of hydraulic equipment. With a maximum pressure of 630 bar and a maximum flow rate of 0.6 l/min (0.16 gal/min), it is suited for hydraulic cylinders for sheet metal punching, busbar processing machines, cable cutters and crimping tools, and large hydraulic punching frames (AP 250 and AP 400). The unit operates at 67 dB(A). Used with the optional hand or foot switch, it can operate SKP-1 and SKP-1 mini hydraulic cylinders.

Applications

• Hydraulic cylinders for sheet metal punching
• Busbar processing equipment
• Cable cutters and crimping tools
• Hydraulic punching frames (e.g. AP 250, AP 400)
• Operation of SKP-1 and SKP-1 mini (with optional hand or foot switch)

Technical data
Product number: 03874
Max. pressure: 630 bar
Max. flow rate: 0.6 l/min (0.16 gal/min)
Tank capacity: 2.5 l (0.66 gal)
Rated power: 0.75 kW
Rated current @ 700 bar: 5 A
Noise emission: 67 dB(A)
Weight (without accessories): 41 kg

Characteristics / technical specifications

• Product number: 03874
• Maximum pressure: 630 bar
• Maximum flow rate: 0.6 l/min (0.16 gal/min)
• Tank capacity: 2.5 l (0.66 gal)
• Rated power: 0.75 kW
• Rated current at 700 bar: 5 A
• Noise emission: 67 dB(A)
• Weight (without accessories): 41 kg
• Optional controls: hand switch or foot switch (available separately)
