Hand-operated punch Compact Combi®
hydraulicfor metal sheets90°

hand-operated punch
hand-operated punch
hand-operated punch
hand-operated punch
hand-operated punch
hand-operated punch
Add to favorites
Compare this product


Characteristics

Control
hand-operated
Drive type
hydraulic
Product handled
for metal sheets
Other characteristics
90°
Pressing force

75 kN

Description

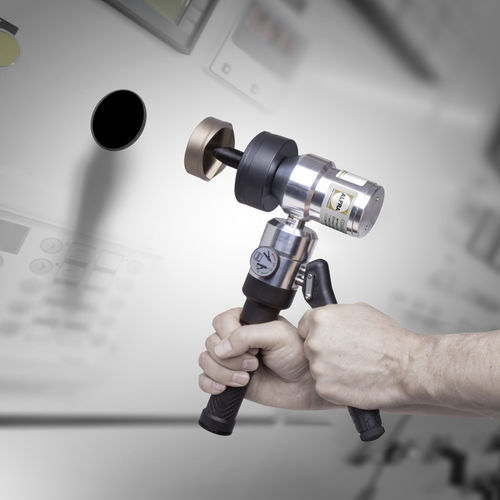

The Compact® Straight Punch Driver, CompactCombi® 90° Punch Driver and Compact Flex® Punch Driver are hand-operated hydraulic devices for making holes of different shapes in soft to medium-strength steel, stainless steel and aluminium sheets. ALFRA punch drivers are low-maintenance thanks to the closed hydraulic circuit and enable you to work with in any position. The hand lever (F) and the stable handle (E) are designed on ergonomic principles to ensure perfect handling of the punch driver. Working pressure inside the pump body (D) and the cylinder (B) is built up and released by the drain screw (C). The drain screw (C) can be opened by turning it to the left into the OFF position and closed by turning it to the right into the ON position. By pressing the hand lever (F) when the drain screw (C) is closed, the necessary working pressure is built up, which pulls the load piston (A) inwards into the cylinder (B) with great force. The pressure is released by opening the drain screw (C) and the load piston (A) is pushed back into its starting position by means of an internal spring. The integrated excess pressure valve limits the maximum attainable pressure within the device and protects the hydraulic punch from excessive use and damage. Perfect punching results are achieved using the suitable ALFRA tools. An overview of our range of quality round and square punches can be found at the end of this operating manual.
