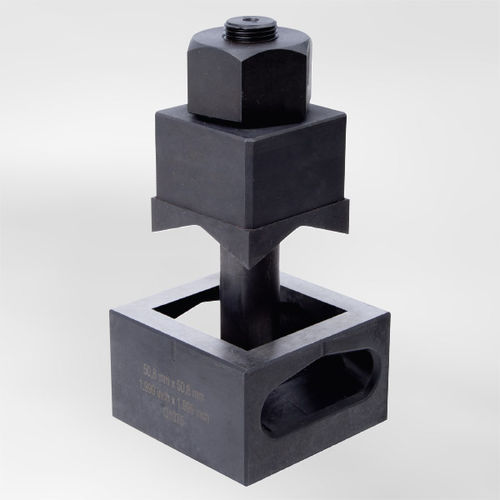

Screw hole punch FormCut® series

rectangularsquare

Here comes the Alfra-hole puncher for square or rectangular cut outs. These punch-outs are for example necessary for heavy duty connectors or for openings to insert control cabinet fans. Because of the sideways puncher part ejection, the waste piece doesn’t tilt in the die and can be disposed easily. The version for square-shaped punch-outs is available from 12,7 mm X 12,7 mm up to 138,0 mm X 138,0 mm. Depending on the model, the square shaped puncher is suitable for steel sheets with a material thickness from 1,75 mm up to 3,0 mm. Besides the FORMCUT is the perfect application solution for 6-, 10-, 16- or 24-pin connectors. Depending on the model, rectangular shaped punch-outs with the Formcut are possible with the measurements 17,0 mm X 19,0 mm and 68,0 mm X 138,0 mm.
