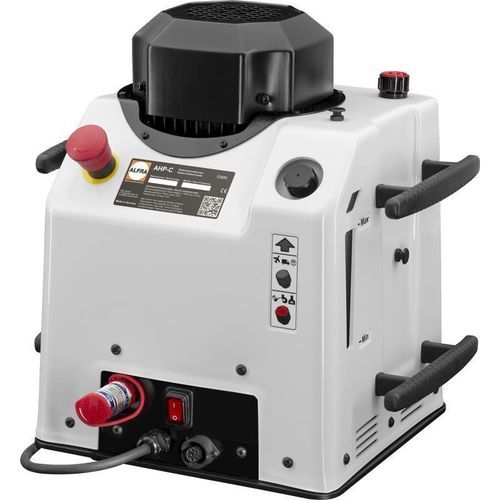

Electrically-powered hydraulic pump AHP C
electro-hydraulicfor industrial applicationswith tank

Electrically-powered hydraulic pump - AHP C - ALFRA GmbH - electro-hydraulic / for industrial applications / with tank
Electrically-powered hydraulic pump - AHP C - ALFRA GmbH - electro-hydraulic / for industrial applications / with tank
Add to favorites
Compare this product
Go to the ALFRA GmbH website for more information

Characteristics

Operation
electrically-powered, electro-hydraulic
Applications
for industrial applications
Other characteristics
with tank, low-noise
Pressure

Min.: 0 bar
(0 psi)

Max.: 630 bar
(9,137.4 psi)

Flow rate

Min.: 0 l/min
(0 us gal/min)

Max.: 1 l/min
(0.26 us gal/min)

Weight

Min.: 41 kg
(90.39 lb)

Max.: 41 kg
(90.39 lb)

Power

Min.: 1.1 kW
(1.5 hp)

Max.: 1.1 kW
(1.5 hp)

Description

Overview
The AHP-C electro-hydraulic pump delivers a maximum flow rate of 1.0 l/min and a maximum pressure of 630 bar. It is one of the most powerful units in the ALFRA/Rittal Automation Systems range and is used to drive semi-automatic busbar processing machines. The design emphasizes low noise and ease of maintenance to reduce service time.

Product number
03880

Technical data
Prod.-No.: 03880
Max. pressure: 630 bar
Max. flow rate: 1.0 l/min (0.26 gal/min)
Tank capacity: 2.5 l
Rated power: 1.1 kW
Rated current @700 bar: 6.5 A
Noise emission: 67 dB(A)
Weight (without accessories): 41 kg

Characteristics / Technical specifications
  • Product number: 03880
  • Max. pressure: 630 bar
  • Max. flow rate: 1.0 l/min (0.26 gal/min)
  • Tank capacity: 2.5 l
  • Rated power: 1.1 kW
  • Rated current @700 bar: 6.5 A
  • Noise emission: 67 dB(A)
  • Weight (without accessories): 41 kg
  • Application: drives semi-automatic busbar processing machines
  • Design: maintenance-friendly construction for simplified servicing
