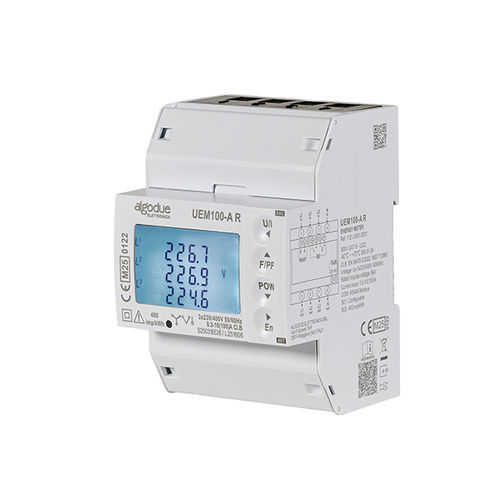

Three-phase electric energy meter UEM100

DIN railpulse outputMID certified

Product Details UEM100 is the new high-performance three-phase energy meter, certified for operation up to 70°C. With a 4-DIN module design, it provides accurate measurement and full functionality even under high current loads. It supports direct connection up to 100 A per phase and communicates via RS485 Modbus RTU or M-Bus. The meter provides bidirectional measurement, compliant with MID Class B (EN 50470-3), making it suitable for billing and certified energy accounting. It measures key electrical parameters, which can be viewed via the integrated COM port. It’s compatible with 2-, 3-, and 4-wire networks, and ensures reliable measurements even under unbalanced load conditions. The device features two S0 outputs—one programmable and one fixed—supports up to four tariff management settings, and includes a metrological LED and sealable terminals for immediate reading and protection. Optional software is available for device management. Technical Specifications - Power supply: Power supplied from the voltage circuit. Range: nominal voltage ±20% - Wiring modes: - 3 ph, 4 wires, (3 currents) - 3 ph, 3 wires, (2 currents) - 1 ph, 2 wires, (1 current) - Voltage & Frequency: Nominal value: 3×230/400 V 50/60 Hz - Current: Starting current Ist: 0.04 mA; Maximum current Imax: 100 A - Accuracy: Active energy class B in compliance with EN 50470-3; Reactive energy class 2 in compliance with EN 62053-23 - Communication: - RS485 Modbus RTU: Configurable transmission speed range: 2.4 – 38.4 kbps - M-Bus: Configurable transmission speed range: 600 – 9.6 kbps - S0 outputs: Two passive optoisolated outputs compliant with IEC 62053-31: - S01: fully programmable via display or protocol, with selectable pulse weight (0.01 / 0.1 / 10 / 100 En/imp) - S02: fixed pulse output: 400 imp/kWh - Tariff management: Up to 4 tariffs that can be managed by HMI or remotely by communication protocol - Environmental conditions: Operating temperature: -40°C to +70°C; Storage temperature: -40°C to +75°C; Protection degree: IP51 (front panel) / IP20 (terminals)
