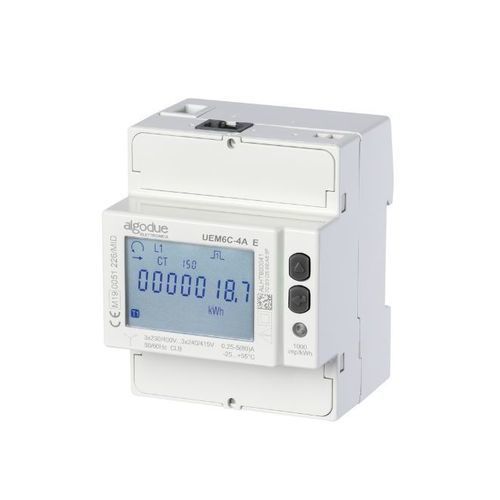

Three-phase electric energy meter UEM6C-A E

DIN raildigitalwith data logger

UEM6C-A E is the 4-DIN module three-phase energy meter, designed for reliable use in both industrial and civil environments. - It supports indirect measurement via standard 1 or 5 A CTs and features integrated Ethernet communication. - It provides bidirectional measurement on 4 quadrants for all energies and powers. - Compliance with Class C according to EN 50470-3 (MID) making it suitable for billing and certified energy accounting. - Compatible with 3-, or 4-wire networks, it ensures reliable measurements even under unbalanced loads. - The device includes a built-in Web Server accessible from any standard browser, enabling real-time monitoring and configuration without external software. - It offers built-in memory for data logging, supports automatic FTP Push transfer, and provides structured access via Web API. - A wide backlit LCD display, metrological LED, and sealable terminals ensure clear readings and secure installation. Technical Specifications: - Power supply: Power supplied from the voltage circuit. Range: nominal voltage ±20% - Wiring modes: 3 ph, 4 wires (3 currents); 3 ph, 3 wires (2 currents) - Voltage & Frequency: Nominal value: 3×230/400 V 50 Hz - Current: Starting current Ist: 1 mA; Maximum current Imax: 6 A - Accuracy: Active energy class C in compliance with EN 50470-3; Reactive energy class 2 in compliance with EN 62053-23 - Communication: Ethernet Modbus TCP; Communication speed: 10/100 Mbps - S0 output: Passive opto-isolated - Metrological LED: Meter constant: 1000 imp/kWh - Environmental conditions: Operating temperature: -25°C to +55°C; Storage temperature: -25°C to +75°C; Protection degree: IP51 (front panel) / IP20 (terminals)
