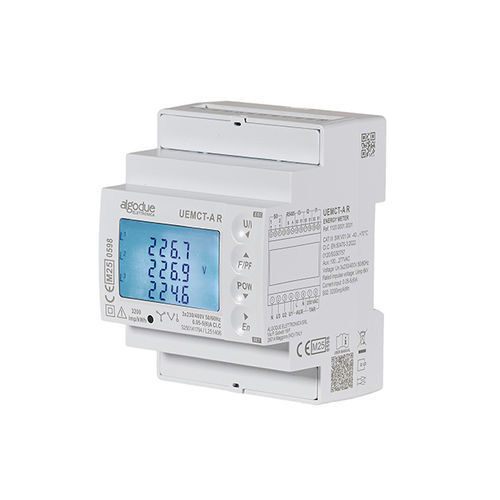

Three-phase electric energy meter UEMCT

panel-mountpulse outputwith LCD display

Product Overview: UEMCT is a three-phase energy meter for CTs, certified for operation up to 70°C. It supports indirect measurement via standard 1 or 5 A CTs and connection to PTs. The meter features RS485 Modbus RTU or M-Bus communication. It provides bidirectional measurement on 4 quadrants for all energies and powers. Compliance with Class C according to EN 50470-3 (MID) makes it suitable for certified energy accounting with high accuracy. Compatible with 2-, 3-, or 4-wire networks, it ensures reliable measurements even under unbalanced loads. Key electrical parameters can be viewed on the display and accessed via the COM port for remote management, with optional software included. The device features two S0 outputs—one programmable and one fixed—supports up to four tariff management settings, and includes a metrological LED and sealable terminals for immediate reading and protection. Optional software is available for device management. - Supports indirect measurement via standard 1 or 5 A CTs and connection to PTs - RS485 Modbus RTU or M-Bus communication - Bidirectional measurement on 4 quadrants for all energies and powers - Compliance with Class C according to EN 50470-3 (MID) - Compatible with 2-, 3-, or 4-wire networks - Reliable measurements even under unbalanced loads - Display and COM port for remote management - Two S0 outputs: one programmable, one fixed - Up to four tariff management settings - Metrological LED and sealable terminals - Optional management software Technical Specifications: - Power supply: Voltage: 100…277 VAC - Wiring modes: 3 ph, 4 wires, (3 currents) 3 ph, 3 wires, (2 currents) 1 ph, 2 wires, (1 current) - Voltage & Frequency: Nominal value: 3×230/400 V 50/60 Hz ±20% - Current: Starting current Ist: 0.005 mA Maximum current: Imax: 6 A - Accuracy: Active energy class C in compliance with EN 50470-3 Reactive energy class 2 in compliance with EN 62053-23 - Communication: RS485 Modbus RTU Configurable transmission speed range: 2.4 – 38.4 kbps M-Bus Configurable transmission speed range: 600 – 9.6 kbps - S0 outputs: Two passive optoisolated outputs compliant with IEC 62053-31: S01: fully programmable via display or protocol, with selectable pulse weight 0.01/0.1/1/10/100/1000En/imp S02: fixed pulse output: 3200 imp/kWh - Tariff management: Up to 4 tariffs that can be managed by HMI or remotely via communication protocol - Environmental conditions: Operating temperature: -40°C to +70°C Storage temperature: -40°C to +75°C Protection degree: IP51 (front panel) / IP20 (terminals)
