liquid flow meter / compact / stainless steel / PTFE
AMF601 series

{{requestButtons}}

Characteristics

  • Fluid:

    for liquids

  • Other characteristics:

    compact, stainless steel, PTFE, clamp-on, explosion-proof

  • Applications:

    for the food industry, sanitary

  • Process pressure:

    Max.: 3,922,000 Pa (568.84 psi)

    Min.: 0 Pa (0 psi)

  • Process temperature:

    Max.: 150 °C (302 °F)

    Min.: -40 °C (-40 °F)

Description

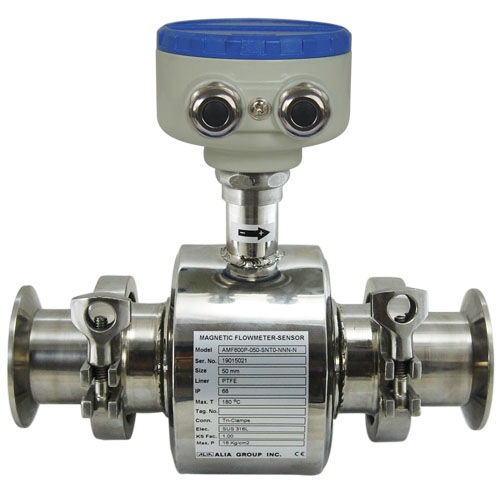

AMF601 Series is a sanitary type electromagnetic flowmeter ideal for conductive liquids. It comes in sizes from 25mm to 100 mm. The AMF601 is widely used for drink water, milk, food & beverage juice and many other industrial fluid.
AMF601 Series electromagnetic flowmeter could be used in compact or separate model with AMC Series converter of electromagnetic flowmeter.
FEATURES


Light and compact version
Flow Velocity range: 0-12 m/s, precise in low flow applications
IDF Tri-Clamp or Union screw Connection
Excellent for high pressure application
Protection class: IP68 available; sensor submersible
PTFE Liner is suitable for vacuum tube
High accuracy of +/-0.4% value of reading (or+/-0.2% value of reading)
With Forward / Reverse flowrate measurement function
