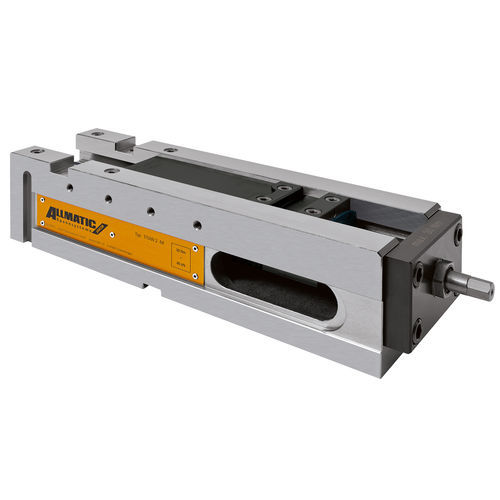

Machine tool vise Titan 2 M

verticalhorizontal

Area of application: - Can be applied horizontally or vertically – therefore suitable for vertical and horizontal CNC milling machines - Conventional clamping, gripp-clamping or pull-down clamping are all possible - Clamping unmachined parts, saw-cut or flame-cut material by penetration of hardened, replaceable gripper elements into the workpiece - With the support jaws, unmachined parts in highly varied materials, or with complex geometries, can be clamped securely and economically. Gripping studs suitable for materials up to approx. 1.400 N/mm² strength, depending on accessories. Product features: - Extension available to increase the clamping range by 179 mm - High versatility – the modular clamping system combines practically all the possibilities of our tried-and-tested models - The TITAN 2 M is ground an polisched on all sides - High-pressure spindle with force amplifier. Clamping force does not slacken - Enlarged clamping span for secure clamping of unmachined parts - Lost clamping margin 8 mm with pull-down, 3 mm with Gripp - Clamping near to neutral axis - Clamping jaws of forerunner are compatible - Standard with mounting holes for zero point clamping system, Pitch 200 - Clamping with torque wrench – max. 30 Nm. This makes it possible to work above the table with an unfavour able clamping arrangement on the tool - Possible zero point clamping bolts The clamping widths can be found in the respective clamping jaws!
