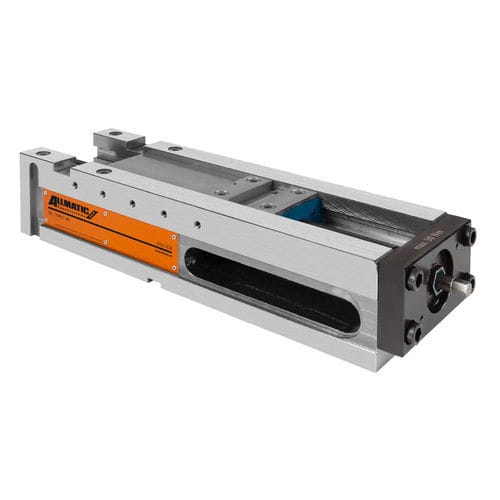

Machine tool vise Titan 2 160

verticalhorizontal

Area of application: - For horizontal and vertical usage - suitable for CNC controlled milling machines and large machining centres - Clamping unmachined parts, saw-cut or flame-cut material by penetration of hardened, replaceable gripper elements into the workpiece - With the support jaws, unmachined parts in highly varied materials, or with complex geometries, can be clamped securely and economically, Gripping studs suitable for materials with a strength of up to approx. 1400N/mm², depending on accessories. Product features: - High versatility – the modular clamping system combines practically all the possibilities of our tried-and-tested models - Fully compatible with the accessories of the LC/TC 160 series, for example gripper studs, universal gripper set and pull down sets - Grounded sides so that all sides can be used - High-pressure spindle with mechanical force amplifier (increased power stroke) for the safe clamping of raw parts in combination with gripping and pull down spring function - Lost clamping margin 8 mm with pull-down, 3 mm with GRIPPER - Clamping extension possible (Is attached to the TITAN 2 - 160 vice on the front side) - Clamping with torque wrench – max. 30 Nm. This makes it possible to work above the table with an unfavour able clamping arrangement on the tool The clamping widths can be found in the respective clamping jaws!
