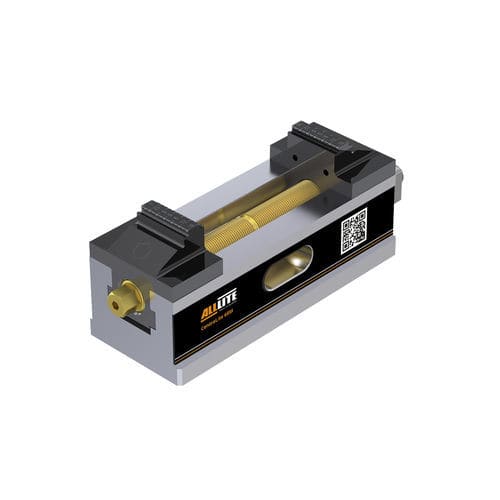

Machine tool vise CentroLite 68 M

• Mechanical centric vice • Clamping force: 28 kN with 100Nm • Massive stable base part from tool steel With hole pattern for the following zero point clamping system: AMF K10 und K20, Erowa With thread holes for the assembly of mechanical workpiece stop. • Reversible jaws (description here) • Gripping jaws with integrated gripper row, width 67mm Lost clamping margin of 4 mm Suitable for pre-milled workpieces up to 1000N/mm² and raw materials up to 550N/mm² (max deviance of parallelism 0.3mm) Threads on high and stepped sides for step strips and customization. V notch for clamping round workpieces with a diameter of 10 mm ? d ? 45 mm • Hardened slideway and jaws • Spindle with a high tensile strength of 700N/mm², good sliding properties and a very high wear resistance • Clamping range 0mm – 163mm
