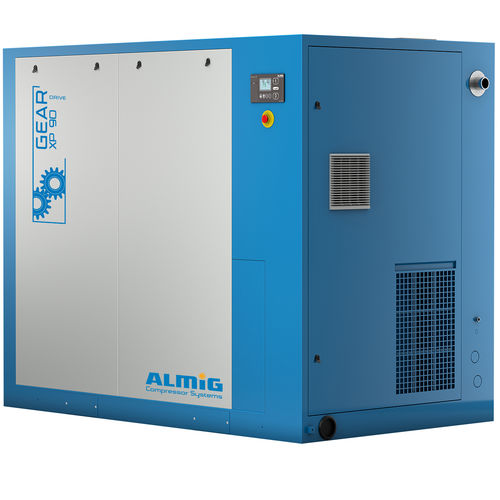

Gear compressor GEAR XP series
airelectricstationary

gear compressor
gear compressor
gear compressor
gear compressor
gear compressor
gear compressor
Add to favorites
Compare this product


Characteristics

Technology
gear
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Applications
service, gearbox
Other characteristics
compact, high-efficiency, rugged, single-stage, air-cooled
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 5 bar
(72.52 psi)

Flow

Max.: 33 m³/min
(1,165.38 ft³/min)

Min.: 2.62 m³/min
(92.52 ft³/min)

Power

Max.: 200 kW
(271.92 hp)

Min.: 22 kW
(29.91 hp)

Length

Max.: 3,300 mm
(130 in)

Min.: 1,250 mm
(49 in)

Width

Max.: 1,860 mm
(73 in)

Min.: 880 mm
(35 in)

Height

Max.: 2,145 mm
(84 in)

Min.: 1,515 mm
(60 in)

Weight

Max.: 3,750 kg
(8,267.3 lb)

Min.: 670 kg
(1,477.1 lb)

Description

A well thought-out system design and careful selection of components optimises the volume flow. This improves energy efficiency, increases reliability and extends the service life of the motor, electrical components, bearings, hoses and seals by up to 50 %. The new GEAR XP series is characterised by an encapsulated gearbox and the speed adaptation of the motor that is thus optimally matched to the compressor stage. In combination with comparatively low rotational speeds and excellent noise insulation, they achieve a very low noise level. This means that the unit can also be installed where the noise level is critical. The maintenance- and service-friendly system concept of the GEAR XP compressors includes a robust drive motor with strong power reserves, generously dimensioned heat exchangers and intelligent cooling air routing. All components have been developed with energy efficiency in mind. Starting with the motor, through the compressor stage to the almost loss-free gearbox, every component has been optimised. As a customer and operator of the system, you benefit from this throughout the entire product life cycle.
