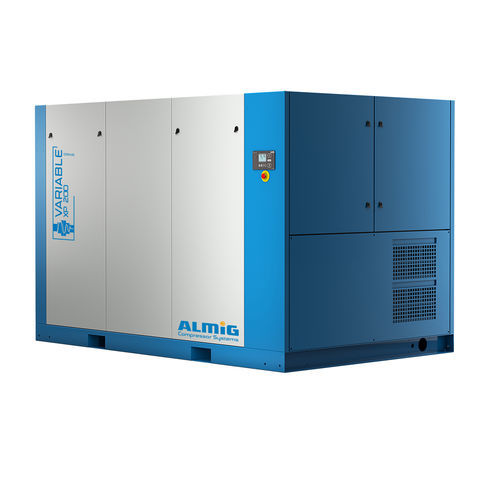

Screw compressor VARIABLE XP series
airelectricstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, high-efficiency, single-stage, air-cooled
Pressure

Min.: 5 bar
(72.52 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 0.89 m³/h
(31.43 ft³/h)

Max.: 35 m³/h
(1,236.01 ft³/h)

Power

Min.: 22 kW
(29.91 hp)

Max.: 200 kW
(271.92 hp)

Length

Min.: 1,250 mm
(49 in)

Max.: 3,300 mm
(130 in)

Width

Min.: 880 mm
(35 in)

Max.: 1,860 mm
(73 in)

Height

Min.: 1,515 mm
(60 in)

Max.: 2,145 mm
(84 in)

Weight

Min.: 560 kg
(1,234.6 lb)

Max.: 3,750 kg
(8,267.3 lb)

Description

The speed-controlled screw compressors of the VARIABLE XP series are the optimal solution for always providing the right amount of compressed air when the demand for compressed air fluctuates. With the integrated frequency converter, the specially designed motor only turns as fast as is necessary to generate the required amount of compressed air. Expensive idle times are thus a thing of the past. The system thus represents the right solution for high cost-effectiveness and an efficient compressed air supply. The product range offers delivery rates of 0.89 - 35 m³/min at operating pressures of 5 - 13 bar. In the development of the new VARIABLE XP screw compressor series, the reliability and service life of the components have been further improved by optimising the cooling air flow. Thanks to additional sound insulation, the unit can also be installed where noise levels are critical. Market analyses show that compressors are only utilised to approx. 50-70 % on average. However, the maximum delivery volume is only needed at peak times. That is why we have developed the ALMiG SCD technology, whose strength lies in the partial load range - exactly where it is needed. SCD technology stands for speed control and direct drive as a holistic drive concept with maximum economic efficiency. Energy savings of up to 35 % can be achieved through: Speed control extremely good system efficiency no start-up switching current peaks no expensive idle times
