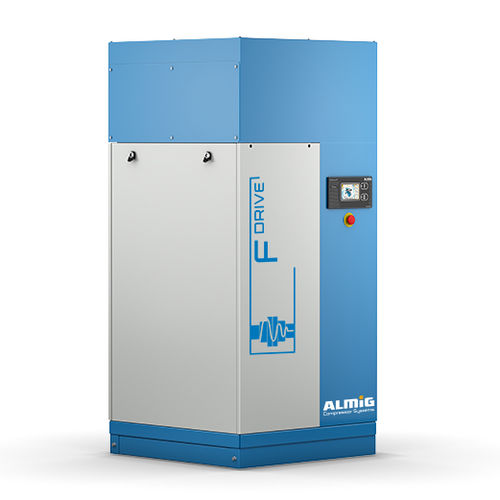

Screw compressor F-Drive seriesairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Applications
- recovery
- Other characteristics
- compact, low-noise, high-efficiency, direct-drive, energy-saving, small, cooled, vertical
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 5 bar
(72.52 psi)- Flow
Max.: 14.17 m³/min
(500.41 ft³/min)Min.: 0.23 m³/min
(8.12 ft³/min)- Power
Max.: 75 kW
(101.97 hp)Min.: 5.5 kW
(7.48 hp)- Length
Max.: 1,395 mm
(55 in)Min.: 660 mm
(26 in)- Width
Max.: 1,155 mm
(45 in)Min.: 690 mm
(27 in)- Height
Max.: 2,000 mm
(79 in)Min.: 1,586 mm
(62 in)
Description
Saving energy and space at the same time, that doesn't have to be a contradiction. Quite the opposite. At ALMiG, we have been proving for many years that the concept of a vertical arrangement of motor and compressor unit is the key to success - to efficiency. Energy-saving speed control through an oil-cooled permanent magnet motor, a highly efficient compressor stage combined with the most intelligent control technology and the lowest noise level are our answer to the increasingly demanding requirements of the future.
Extremely energy-efficient due to direct drive and speed control
Smallest footprint due to vertical arrangement of the motor-compressor unit
Easy accessibility and maintenance
Motor efficiency corresponds to IE4 or better
Heat recovery optionally available incl. utilisation of waste heat from the motor!
Air Control P as standard compressor control
