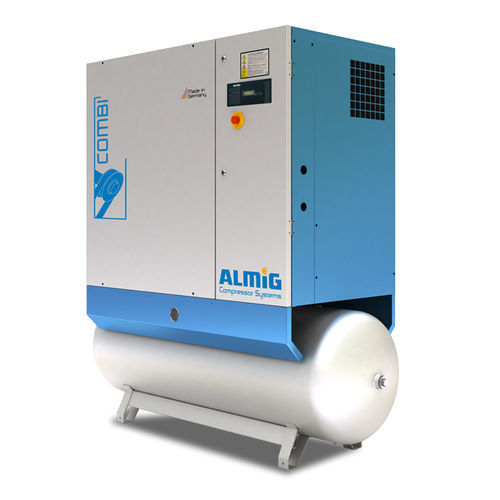

Screw compressor COMBI series
airelectricstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-injected
Application domain
industrial
Other characteristics
compact, low-noise, tank-mounted, small, with refrigerant dryer, belt-driven
Pressure

Min.: 5 bar
(72.52 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 0.62 m³/min
(21.9 ft³/min)

Max.: 3.24 m³/min
(114.42 ft³/min)

Power

Min.: 5.5 kW
(7.48 hp)

Max.: 22 kW
(29.91 hp)

Length

Min.: 1,180 mm
(46 in)

Max.: 1,900 mm
(75 in)

Width

Min.: 770 mm
(30 in)

Max.: 780 mm
(31 in)

Height

Min.: 1,128 mm
(44 in)

Max.: 1,950 mm
(77 in)

Description

Our COMBI series screw compressor is ALMiG's economical 4-in-1 solution. The compressed air station combines compressor, compressed air receiver, refrigeration dryer and pre- and after-filter in one housing as standard and thus meets the high compressed air quality requirements for pneumatic applications in accordance with DIN ISO 8573-1. The COMBI screw compressors range from 5.5 - 22 kW drive power with volume flows of 0.62 - 3.24 m³/min and are equipped with a reliable and extremely effective V-belt drive. With their small footprint of 1 m² and extremely quiet noise levels, the compact compressors can also be installed directly where you need the compressed air. This saves your company major investments in expensive compressed air lines. Another advantage of these extremely compact compressors is their low weight and easy transportability. A pallet truck or forklift truck is all that is needed to place the complete compressed air station on site.
