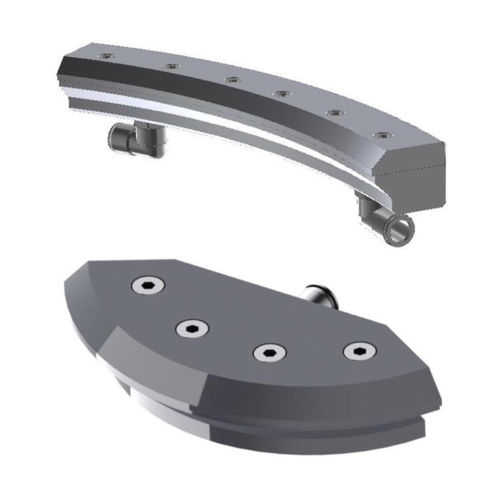

Blow-off air knife VNTC / VNTD

coolingdryingcleaning

Curved air blade, arc-shaped, for industrial applications Arc-shaped compressed air blades are specifically designed for blowing, cleaning, and drying surfaces. With their high-speed, powerful air flow, these devices are perfectly suited for various applications such as dust removal, liquid elimination, cooling, heating, and creating thermal barriers. By harnessing the Coanda effect, they maximize efficiency by incorporating ambient air into the main flow, thus enabling reduced and optimized energy consumption. Technical Specifications: Fluid: Filtered compressed air (25 µ) Maximum Pressure: 8 bar Connection: 2x G1/4” Materials: Anodized aluminum or stainless steel 316 Inner Radius: From 100 to 450 mm Central Angle: From 15° to 180° Flow Adjustment: Adjustable via gap, with optional precision shims 3D files are available upon request for easy integration into computer-aided design (CAD). Applications: Recommended for use in environments requiring intensive cleaning, debris control, or thermal handling.
