Rotating air knife RRNblow-offcoolingdrying
Add to favorites
Compare this product
Characteristics
- Function
- blow-off, cooling, drying, cleaning, static charge elimination
- Product applications
- for bottles, for cans, for pipes, sachet
- Applications
- for the automotive industry, for compressed air networks, for high-temperature applications, for the paper industry, for the food and beverage industry, process, for chemical applications, for the printing industry, for food applications, for hygienic applications, for pharmaceutical applications, for the wood industry, for electrical applications, for the textile industry, for the construction industry, for the rubber industry
- Domain
- industrial
- Other characteristics
- straight, precision, rotating
- Material
- stainless steel, aluminum, anodized aluminum
- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116.03 psi)- Air consumption
Min.: 0 l/min
(0 us gal/min)Max.: 1,000 l/min
(264.17 us gal/min)
Description

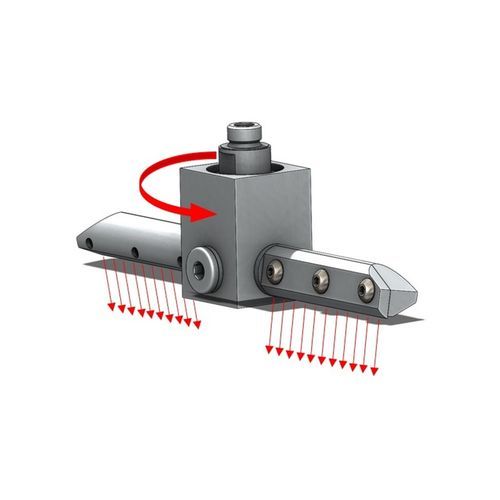

Rotating Compressed Air Blade for Blowing and Cleaning
This industrial blowing solution is designed to ensure efficient cleaning, fast drying, and optimal dust removal. Thanks to the Coanda effect, this compressed air blade generates a powerful and uniform airflow, while reducing energy consumption.
Technical Specifications
Fluid used: Filtered compressed air (25µ)
Maximum pressure: 8 bar
Materials: High-strength aluminum with anodized or standard surface treatment
Available Dimensions
Arm length: from 50 to 130 mm (custom sizes available)
Diameter: from 142 to 302 mm (custom adaptations available)
Connection: G1/4” male
Precise adjustment: Air gap tuning using shims from 0.05 to 0.21 mm
Advantages of ALPHA AUTOMATISMES Compressed Air Blades
Energy savings: Lower consumption compared to drilled tubes or flat nozzles.
Enhanced efficiency: Precise blowing on various industrial surfaces.
Low noise level: Improved working environment comfort.
Durability: High-quality aluminum for maximum longevity.
Industrial Applications
Ideal for multiple sectors:
Food industry: Removal of liquid residues.
Printing and paper industry: Precise drying.
Textile and plastic industry: Cooling and dust removal.
Complete documentation : https://www.alpha-automatismes.com/pdf/lame-rotative-air-comprime-soufflage-nettoyage.pdf
