Continuous-flow reactor LabFLO®

processgas-liquidHastelloy®

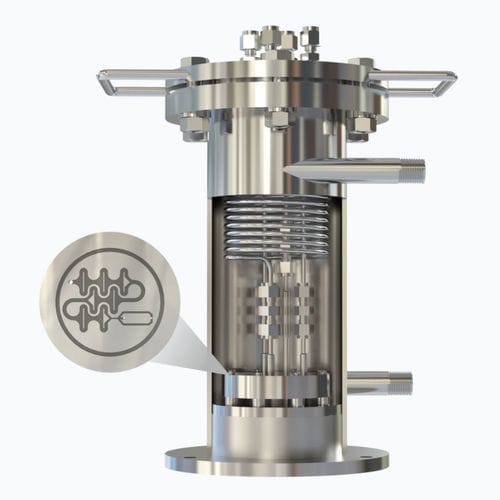

The LabFLO™ is a convenient reactor for lab-scale proof of concept studies. It is a 1 mL micro-mixer and 10 mL of residence time coils. These are immersed in a circulating fluid bath to maintain the process temperature. The LabFLO™ reactor can carry out reactions, including nitrations, sulfonation, diazotizations, oxidations, reductions, etc., all using raw materials and microliters. Features Volume: 1 mL micromixer & 10 mL residence coil Flow Rates: Up to 6 LPH Pressure: Up to 50 bar Temperature: Up to 250°C Heat Transfer Area: >2,000 m² / m³ Material: SS316, Hastelloy, etc. Read more Applications: Suitable for Nitration, Halogenation, Sulfonation, Diazotization, Oxidation, Reduction, Lithiations, Grignard based chemistries.
