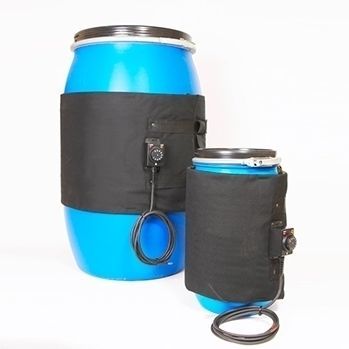

Jacket drum heater CT series

for viscous productsfor liquidsfiber for high-temperature applications

Product
The drum heating jackets heat industrial drums from the outside to maintain fluidity of the contents and facilitate emptying. They fit 25, 50, 100 and 200 L drums, provide uniform heating and reduce heat loss. The jacket is lightweight, simple to apply and secures with three adjustable straps.
The lining is fiberglass fabric coated with silicone rubber. The jacket resists external temperatures up to 180°C, is water-repellent, flame-retardant and resistant to water vapour. It is supplied with a 3 m power cable with PVC protection, galvanised steel shielding and an integrated thermostat adjustable from 0 to 90°C.

Health and Safety
All drum heating jackets are manufactured in compliance with EC directives. Do not operate the jacket during filling, refilling or emptying the drum. Do not leave the power cable connected while handling the drum. To prevent spillage due to temperature increase, do not overfill drums and always work in a well ventilated area.

Product advantages

• Designed for standard industrial drums (25–200 L).
• External heating avoids direct contact with the contained product.
• Prevents contamination and burning of the drum contents.
• Construction: fiberglass fabric coated with silicone rubber.
• Compliant with EC standards.

Technical data
VERSION | SIZE LxH (mm) | WEIGHT (kg) | VOLTAGE (V) | POWER (W) | CODE
25 L | 870/1020×400 | 10 | 230/1 | 200 | CT/25
50 L | 1100/1250×460 | 15 | 230/1 | 250 | CT/50
100 L | 1500/1650×370 | 20 | 230/1 | 400 | CT/100
200 L | 1800/1950×800 | 25 | 230/1 | 1200 | CT/200

Characteristics / technical specifications

• Temperature: max 90°C (inner walls)
• Regulation: capillary thermostat with wheel (adjustable 0–90°C)
• Protection: IP40
• Material: fiberglass coated with silicone rubber
• Cable length: 3 m without plug (PVC protection, galvanised steel shielding)
• Available versions and codes: CT/25, CT/50, CT/100, CT/200
