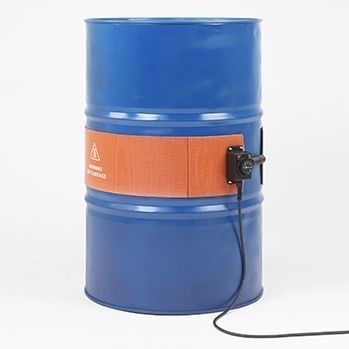

Belt drum heater FRF-11

jacketfoodfor solids

Product description
Silicone rubber side heaters are designed to heat contents of 200 L metal drums from the outside. They are suitable for soaps, greases, certain foodstuffs, varnishes and various chemical products to facilitate transfer and pumping. Each heater is marked with identification and batch numbers for traceability and is resistant to moisture and many chemicals.

Health and Safety
All silicone side drum heaters are manufactured in accordance with EC directives. Do not switch on or keep the heater operating during drum filling, refilling or emptying. Do not leave the power cable connected while handling the drum. To avoid spillage caused by expansion of heated substances, do not fill drums to the brim and always work in a well ventilated area.

Product advantages

• Specifically made for standard 200 L metal drums.
• External heating avoids direct contact with the drum contents.
• Does not contaminate or scorch the product inside the drum.
• Constructed from durable, high-quality silicone rubber.
• Heating jackets comply with EC standards.

Technical specifications

• Power: 1500 W
• Power supply: 230 V
• Current: 6.5 A
• Temperature range: 0 °C – 120 °C
• Control: thermostat adjustable from 20 °C to 120 °C
• Protection: IP55
• Length: 1665 mm
• Height: 180 mm
• Weight: 2 kg
• Material: silicone rubber band with double insulation and practical spring fastening
• Power cable: 2 m
