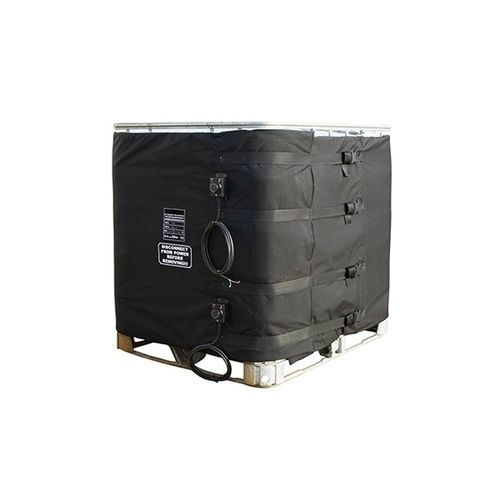

IBC container heater CT/IBC2

Product description
Heating jacket CT/IBC2 is designed to heat and maintain the viscosity of products stored in 1000 L IBC containers (plastic). It heats from the outside to allow safe transfer of greases, oils and food substances to smaller containers and to facilitate handling during processing.

Compliance & safety
The CT/IBC2 is manufactured in accordance with EC directives. Do not operate the heating jacket during filling, refilling or emptying of the IBC. Always disconnect the power cable before handling the jacket. To avoid overflow when the product expands with temperature, do not fill the IBC to the brim and ensure adequate ventilation during use.

Product advantages

• Designed specifically for 1000 L plastic IBC containers.
• External heating avoids direct contact with the contained product, preventing contamination or scorching.
• Double-circuit design enables independent regulation of heating as the liquid level changes.
• Compliant with EC safety standards for industrial heating equipment.

Technical specifications

• Product reference: CT/IBC2
• Indicative price: €1,800; insulated cover option: €160
• Power: 2 circuits, 1000 W each
• Power supply: 110 V or 230 V
• Current: 18 A or 8.7 A
• Temperature range: 0 °C to 90 °C
• Control: 2 capillary thermostats with dial
• Protection rating: IP40
• Length: 1000 mm × 4400 mm (heated length 3900 mm)
• Height: 1000 mm
• Weight: 20 kg
• Material: Teflon jacket with polyester insulation and adjustable buckles with stiff opening
• Option: insulated cover
• Cable length: 3 m power supply cable
