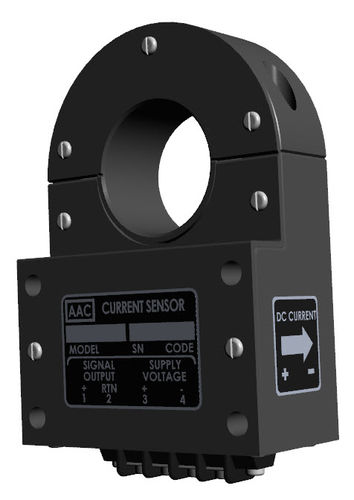

Magneto-resistive current transducer ±150A ... ±2500A | 909M4 Series

magneto-resistive current transducer
magneto-resistive current transducer
Add to favorites
Compare this product


Electrical characteristics
Other characteristics


Model 909M4 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±150Adc to ±2500Adc and the transducers withstand, without performance degradation or damage, a continuous overload of one-hundred times full-scale. The 909M4 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operate with a supply voltage from +15Vdc ±2Vdc and are low powered. The unit’s molded construction, with the internal components encapsulated, creates a durable transducer. The 909M4 Bidirectional Current Transducer comes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer excellent for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a barrier or connector interface, with the connector option available with mating connector.
