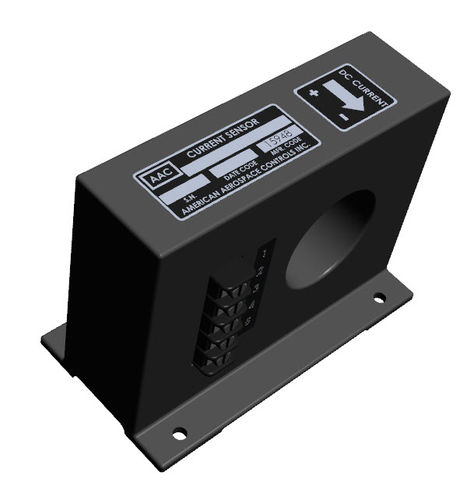

Hall effect current sensor ±100A ... ±600A | 947 Series
fixedDC

Hall effect current sensor
Hall effect current sensor
Add to favorites
Compare this product


Characteristics

Technology
Hall effect
Mounting
fixed
Electrical characteristics
DC

Description

Model 947 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±100Adc to ±600Adc and the sensor withstand, without performance degradation or damage, a continuous overload of ±5000Adc. The 947 Series delivers high performance accuracy over a temperature range from -20°C to +70°C, measures input current with a frequency range from DC to 100kHz and operates with a supply voltage of ±15Vdc ±1Vdc. The unit’s molded construction and the internal components encapsulated creates a durable transducer, withstanding environments of humidity and shock. The 947 Bidirectional Current Transducer comes standard with a 1.50” (3.81 cm) thru-hole and a barrier interface.
