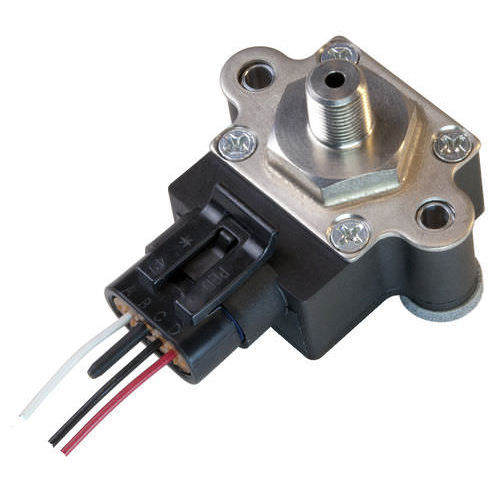

Relative pressure transducer SPT seriespiezoresistiveanalog15VDC
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- piezoresistive
- Output
- analog
- Supply voltage
- 15VDC, 6VDC
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- rugged, IP64
- Other characteristics
- compact, OEM
- Pressure range
Max.: 5,000 psi
Min.: 0 psi
- Precision
0.25 %, 0.5 %
- Long-term stability
0.25 %
- Process temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
AMETEK’s Model SPT pressure transducer is general purpose pressure sensor, used in a variety of industries and applications. The SPT has a rugged, compact design, with 316 SST wetted parts for excellent media compatibility. It is available in pressure ranges from vacuum to 10 psig to 0 to 5000 psi with a 1-6 VDC output and 8-15 VDC excitation. The accuracy is +/- 0.25% BFSL and burst pressure is 3 times full scale.
Each unit is shipped fully compensated for pressure and temperature and is completely interchangeable without the need for further calibrations. It comes standard with a Packard connector, and meets IP-64.
The Model SPT can be customized for OEM’s, such as special pressure ranges, tighter calibration, different electrical connections or pressure connections,
