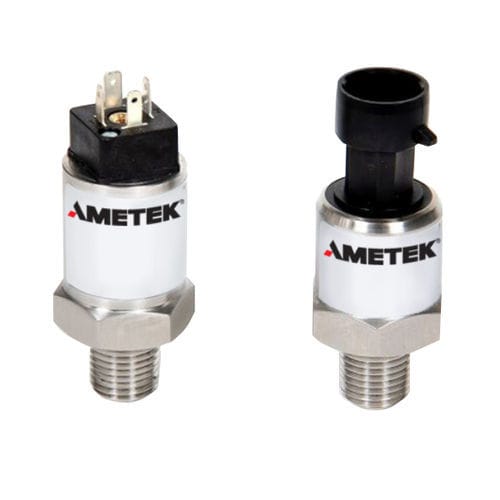

Relative pressure transducer ECP10
vacuumpiezoresistive4-20 mA

Relative pressure transducer - ECP10 - AMETEK Pressure - vacuum / piezoresistive / 4-20 mA
Relative pressure transducer - ECP10 - AMETEK Pressure - vacuum / piezoresistive / 4-20 mA
Relative pressure transducer - ECP10 - AMETEK Pressure - vacuum / piezoresistive / 4-20 mA - image - 2
Relative pressure transducer - ECP10 - AMETEK Pressure - vacuum / piezoresistive / 4-20 mA - image - 3
Relative pressure transducer - ECP10 - AMETEK Pressure - vacuum / piezoresistive / 4-20 mA - image - 4
Add to favorites
Compare this product
Go to the AMETEK Pressure website for more information

Characteristics

Pressure type
relative, vacuum
Technology
piezoresistive
Output
4-20 mA
Supply voltage
5VDC, 12VDC, 36VDC
Mounting
threaded
Material
stainless steel
Protection level
IP65
Applications
process
Other characteristics
compact, OEM, custom-made
Pressure range

Max.: 10,000 psi

Min.: 0 psi

Precision

1 %

Long-term stability

0.2 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

The ECPT10 Series Pressure Transducer utilizes piezoresistance technology in an all stainless steel body. It is compact in size, has long term stability, ease of installation and is very economical as well as reliable. The ECPT10 sets a new price-performance standard for low cost, high volume commercial and industrial applications. APPLICATIONS: • Hydraulic / mobile hydraulic • Pneumatic systems • Food and beverage industry • Refrigeration systems • Pumps and compressors • Energy and water management • Construction and agricultural equipment FEATURES: • Various outputs • Compact design • 316 stainless steel housing • All stainless steel wetted parts • Low cost • Industrial 1% accuracy (optional 0.5% accuracy also available, contact Customer Service) • Custom outputs and ranges available • OEM tested and approved • Low power consumption
