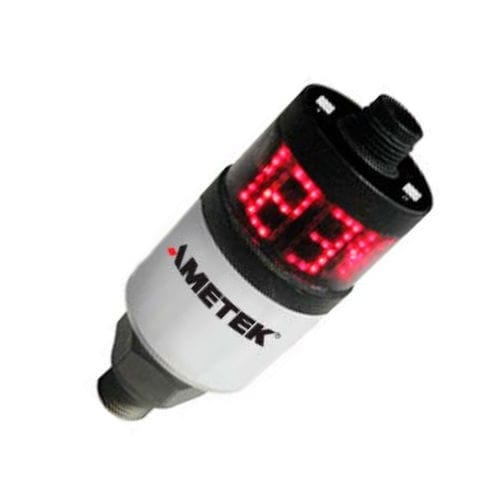

Relative pressure transducer PST360

digitalanalogM12 connector

What makes the PST360 Series stand apart is the unique LED display - which allows for 360° scrolling, or you can lock the display in one location. It also features field programmable set points and hysteresis Because it is built on Peak technology, the PST360 Series incorporates redundant sensing elements, allowing for notification that the sensor needs to be replaced should one of the sensing elements fail (maintenance mode), eliminating operational downtime. The PST360 Series pressure switch/transducer comes standard with one digital output and optional analog output. Unit operates from 10.5 to 28 VDC, and is IP67 certified. FEATURES: • Maintenance Mode (redundant sensing notification) • 4-digit, bi-color display (red or green) • Display: 360° scrolling or lock in location • Digital outputs : 250 mA max (PNP) or 200 mA max (NPN), and/or optional analog output: up to 10 VDC or up to 20 mAfield selectable) • Wide variety of pressure ranges up to 10K psig • Peak Monitoring Technology
