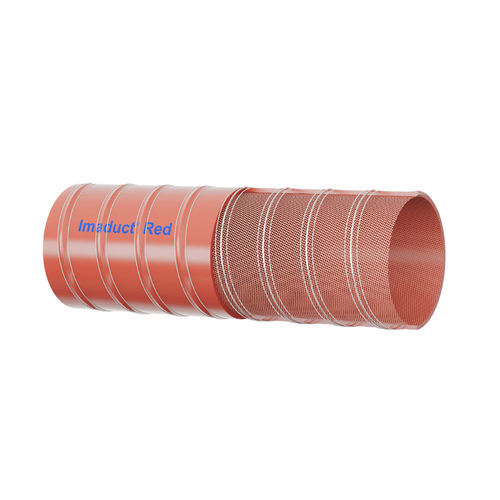

Flexible air duct ImaDuct™

spiralroundcircular

Product description
Flexible duct hose constructed from high-quality fiberglass fabric coated on both sides with silicone rubber. A stainless-steel helical (spiral) wire is embedded inside the hose for structural reinforcement. The outer surface is finished with a silicone coating and additional fiberglass wrap for abrasion and thermal protection.

Applications

• Extraction of hot air from ceramic kilns and industrial ovens.
• Ventilation and climate control systems in aircraft cockpits, helicopters and various vehicles.
• Hot-air oven exhaust and fume extraction where high-temperature gas handling is required.

Certifications

• Conforms to USFDA 21 CFR 177.2600
• Complies with EU Directive 2015/863

Key Features

• Suitable for a variety of gases including hot air and fumes.
• Service temperature range: +70°C to +300°C.
• Fiberglass cloth with silicone coating on both sides for thermal stability and surface protection.
• Spiral stainless-steel wire reinforcement inside the hose for shape retention and support.
• Narrow-pitch spiral design for high flexibility and efficient venting.
• Small bending radius; kink-resistant; can be bent up to 360°.
• Resistant to oils, solvents, ozone, water and fungus.

Colors

• Red
• White
• Transparent

Standard Size Available

• 1 | 32 2.5DT | 32 x 2.5 mm (ID x OD) | 1.25 in (ID) | Max working pressure: 2.6 bar @27°C | Min burst pressure: 400 bar @27°C | Min bend radius: 64 mm | Vacuum Hg @70°F/27°C: 10 mm
• 2 | 38 2.5DT | 38 x 2.5 mm | 1.5 in (ID) | Max working pressure: 2.6 bar @27°C | Min burst pressure: 400 bar @27°C | Min bend radius: 64 mm | Vacuum Hg: 10 mm
• 3 | 51 2.5DT | 51 x 2.5 mm | 2 in (ID) | Max working pressure: 2.5 bar @27°C | Min burst pressure: 350 bar @27°C | Min bend radius: 84 mm | Vacuum Hg: 10 mm
• 4 | 63 2.5DT | 63 x 2.5 mm | 2.5 in (ID) | Max working pressure: 2.3 bar @27°C | Min burst pressure: 300 bar @27°C | Min bend radius: 102 mm | Vacuum Hg: 10 mm
• 5 | 75 2.5DT | 75 x 2.5 mm | 3 in (ID) | Max working pressure: 2.1 bar @27°C | Min burst pressure: 270 bar @27°C | Min bend radius: 121 mm | Vacuum Hg: 10 mm
• 6 | 89 2.5DT | 89 x 2.5 mm | 3.5 in (ID) | Max working pressure: 2.0 bar @27°C | Min burst pressure: 250 bar @27°C | Min bend radius: 141 mm | Vacuum Hg: 5 mm
• 7 | 100 2.5DT | 100 x 2.5 mm | 4 in (ID) | Max working pressure: 1.9 bar @27°C | Min burst pressure: 250 bar @27°C | Min bend radius: 160 mm | Vacuum Hg: 5 mm
• 8 | 127 3DT | 127 x 3 mm | 5 in (ID) | Max working pressure: 1.5 bar @27°C | Min burst pressure: 170 bar @27°C | Min bend radius: 199 mm | Vacuum Hg: 5 mm
• 9 | 150 3DT | 150 x 3 mm | 6 in (ID) | Max working pressure: 1.3 bar @27°C | Min burst pressure: 125 bar @27°C | Min bend radius: 237 mm | Vacuum Hg: 5 mm

Technical specifications

• Material: Fiberglass cloth with silicone rubber coating on both sides.
• Reinforcement: Spiral (helical) stainless-steel wire inside the hose.
• Service temperature range: +70°C to +300°C.
• Suitable media: Various gases including hot air and fumes.
• Mechanical: Narrow-pitch spiral for flexible venting, small bending radius, kink-proof; can be bent up to 360°.
• Chemical/environmental resistance: Resistant to oils, solvents, ozone, water and fungus.
• Available colors: Red, White, Transparent.
• Standard sizes and corresponding working/burst pressures and bend radii listed above.
