Beverage hose Imafit®

siliconetransferfor food industry applications

Product Overview

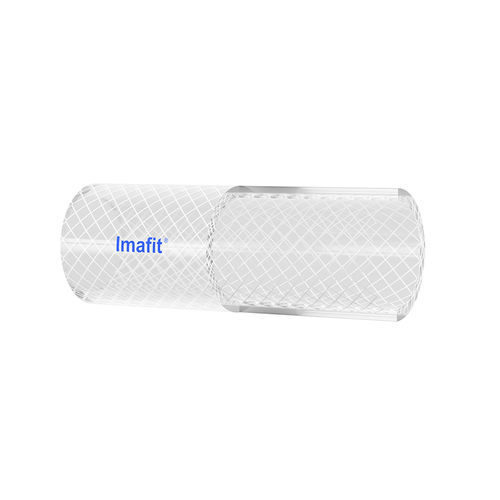

Imafit® is a platinum cured silicone hose reinforced with polyester braiding. It provides excellent flexibility for pressurized fluid transfer applications in pharmaceutical and biotech industries. The hose is manufactured under stringent quality parameters to deliver greater flexibility and a minimum bend radius.

Applications

• Pharmaceutical and Biotech Material Transfer
• Critical Liquid Transfer
• Load Cell and Cell Cultures
• Analytical Lab, Food and Beverages
• Biotechnology

Certifications

• TOXIKON base E&L studies available on inner liner
• NSF-51 certification on resin liner
• Conforms to US FDA 21 CFR 177.2600 Food Grade Standard
• Conforms to USP Class VI
• Conforms to ISO 10993
• RoHS certified, free of restricted heavy metals
• Free of Phthalate/Bisphenol/Volatile Plasticizer
• TSE/BSE Certification (free of animal derived material)
• Complete validation package available upon request

Key Features

• Excellent flexibility
• Manufactured from low volatile grade silicone resin
• Imparts no taste and odor
• Lot traceable
• Temperature Range: -80°C to 230°C
• Available with SS 316L Tri-clover end having RA value ≤ 0.5 at Bore
• Colored outer layer available
• Customer color coding available
• Sterilizable by Autoclave, Ethylene Oxide Gas & Gamma Radiation

Standard Size Available
#: PART NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (IN BAR) @ 27°C | MIN BURST PRESSURE (IN BAR) @ 27°C | BEND RADIUS (IN MM) | VACCUM Hg @ 70°F/27°C
1 | 0613FT | 6 x 13 | ¼” | 10.0 | 30 | 50 | NA
2 | 0916FT | 9 x 16 | 11/32” | 9.0 | 27 | 50 | NA
3 | 1220FT | 12 x 20 | ½” | 7.0 | 21 | 80 | NA
4 | 1624FT | 16 x 24 | 5/8” | 7.0 | 21 | 90 | NA
5 | 1927FT | 19 x 27 | ¾” | 6.0 | 18 | 110 | NA
6 | 2535FT | 25 x 35 | 1” | 4.0 | 12 | 160 | NA
7 | 3242FT | 32 x 42 | 1¼” | 3.0 | 9 | 200 | NA
8 | 3850FT | 38 x 50 | 1½” | 2.5 | 8 | C/P | NA

Technical Specifications

• Material: Platinum cured silicone with polyester braiding reinforcement
• Inner liner: Food grade resin liner conforming to FDA 21 CFR 177.2600
• Biocompatibility: Conforms to USP Class VI and ISO 10993
• Temperature range: -80°C to 230°C
• Pressure: Max working pressures and burst pressures vary by size (see Standard Size table)
• Bend radius: Size-dependent (see Standard Size table)
• Sterilization methods: Autoclave, Ethylene Oxide (EtO) gas, Gamma radiation
• Ends: Available with SS 316L Tri-clover end with RA ≤ 0.5 at bore
• Chemical additives: Free of phthalates, bisphenol and volatile plasticizers; RoHS compliant
• Traceability: Lot traceable
• Options: Colored outer layer and customer color coding available
