Acid hose Imaweld®

for high-purity fluidsTPEpolyester

Product overview

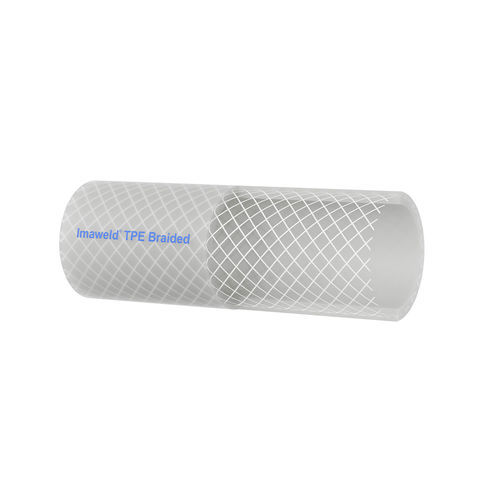

Imaweld® TPE Braided Tubing is a braided thermoplastic elastomer tube developed for biopharmaceutical and medical fluid transfer applications where a reinforced tube is required to meet higher pressure or improved burst performance compared with non-reinforced thermoplastic tubing. Manufactured and packaged in an ISO Class 7 cleanroom using an animal-derived-component-free (ADCF) formulation, the tubing incorporates a polyester braid for mechanical reinforcement and controlled expansion.

Characteristics

• Available in multiple braided TPE constructions with a wide range of internal and outer diameters to match process requirements
• Complete manufacturing process conducted in an ISO Class 7 cleanroom with controlled procedures from raw material to finished product

Compliance and Certifications

• ISO 10993-5 (Cytotoxicity, in vitro)
• ISO 10993-3 (Genotoxicity)
• ISO 10993-4 (Hemolysis)
• ISO 10993-11 (Systemic toxicity, in vivo)
• USP Class VI
• USP 87
• FDA 21 CFR 177.2600
• Phthalate free
• ROHS compliant
• Extractable & Leachable study available

Key Features

• Biopharmaceutical grade materials and processing
• Higher burst pressure compared with non-braided thermoplastic tubing
• Ultra-flexible with improved minimum bend radius
• Autoclavable and gamma sterilizable
• Operational temperature range: -40°C to 135°C
• Kink resistant
• Excellent resistance to acids and alkalis
• BPOG extractable study report available
• Quick delivery support
• Option for sanitary Tri-Clover fitting

Standard Size Available (table)
# | PART NO. | ID in Inch (mm) | OD in Inch (mm) | Working Pressure (in Bar) | Minimum bend radius (in mm) | Coil length (in meter)
1 | 06-13-IWB | 0.237 (6) | 0.512 (13) | 7.58 | 38 | 25
2 | 09-16-IWB | 0.354 (9) | 0.63 (16) | 5.5 | 63.5 | 25
3 | 12-20-IWB | 0.472 (12) | 0.787 (20) | 8.96 | 76 | 25
4 | 16-24-IWB | 0.629 (16) | 0.944 (24) | 7.58 | 100 | 15
5 | 19-29-IWB | 0.748 (19) | 1.106 (27) | 7.58 | 140 | 15

Technical specifications

• Brand: Imaweld®
• Product family: TPE Braided Tubing
• Material: Thermoplastic elastomer (TPE) with polyester braid reinforcement
• Clean room manufacturing: ISO Class 7
• Resin: Animal derived component free (ADCF)
• Biocompatibility and regulatory: ISO 10993 series, USP Class VI, USP 87, FDA 21 CFR 177.2600
• Phthalate free and ROHS compliant
• Sterilization: Autoclavable and gamma sterilizable
• Temperature range: -40°C to 135°C
• Properties: Ultra-flexible, improved bend radius, higher burst pressure vs non-braided tubing, kink resistant, excellent acid and alkali resistance
• Available fittings: Option for sanitary Tri-Clover fitting
• Available coil lengths and part numbers: See Standard Size Available table above
