Steam hose Imawrap-C™

siliconefor high pressuretransfer

Product Overview

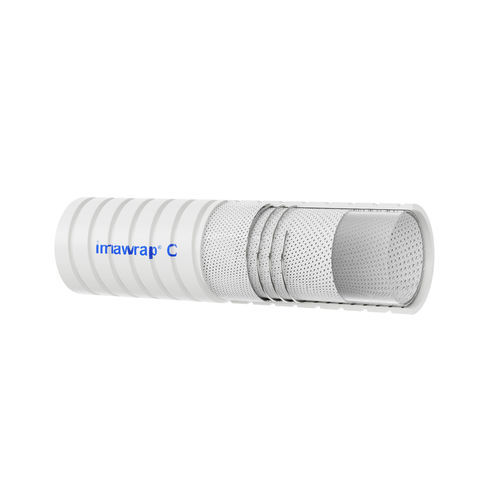

Imawrap-C™ is an inner-smoothbore, platinum-cured silicone hose reinforced with SS 316L helical wire and four layers of high-quality polyester fabric wrapping, plus a silicone outer convoluted cover. Multiple layers of polyester fabric enhance burst pressure rating. The product is suitable for high kink resistance and high-pressure steam transfer applications in pharmaceutical and biotech industries.

Applications

• Pharmaceutical processing
• Food processing
• Load cell application
• CIP, WFI transfer application
• Bulk powder transfer
• Cosmetic and ultrapure water transfer
• High pressurized steam transfer application

Certifications

• Toxikon-based E&L studies available on the inner liner
• NSF-51 certification on resin liner
• Conforms to the US FDA 21 CFR 177.2600 Food Grade Standard
• Conforms to USP Class VI
• Conforms to ISO 10993-1
• RoHS; free of phthalate / Bisphenol / volatile plasticizer; TSE / BSE certification
• Animal origin certification (free of animal-derived material)
• USFDA DMF accreditation #26201
• Complete validation package available upon request

Key Features

• High pressure rating ensures safe material transfer handling
• Designed for high vacuum rating applications
• Excellent flexibility and kink resistance
• Lot traceable
• Temperature range: ‐55 °C to 220 °C
• Available with SS316L tri-clover end
• Sterilizable by Autoclave, CIP & SIP processes; Ethylene oxide gas & Gamma radiation compatible

Standard Sizes (catalogue)
# | CATALOGUE NO. | SIZE IN MM (ID x OD) | SIZE IN INCH (ID) | MAX WORKING PRESSURE (IN BAR) @ 27°C | MIN BURST PRESSURE (IN BAR) @ 27°C | MIN BEND RADIUS IN (MM) | VACUUM Hg @ 70°F/27°C (IN MM)
1 | 1222WP | 12 x 22 | ½” | 16 | 34 | 40 | FULL
2 | 1628WP | 16 x 28 | 5/8” | 14 | 34 | 50 | FULL
3 | 1930WP | 19 x 30 | ¾” | 13 | 34 | 60 | FULL
4 | 2538WP | 25 x 38 | 1” | 10.5 | 32 | 90 | FULL
5 | 3246WP | 32 x 46 | 1¼” | 10 | 32 | 90 | 500
6 | 3852WP | 38 x 52 | 1½” | 9.5 | 30 | 110 | 400
7 | 5064WP | 50 x 64 | 2” | 8 | 30 | C/P | 300
8 | 6478WP | 64 x 78 | 2½” | 6.5 | 25 | C/P | C/P
9 | 7590WP | 75 x 90 | 3” | 5 | 20 | C/P | C/P

Caractéristiques / spécifications techniques

• Inner liner: Platinum-cured silicone (inner smoothbore)
• Reinforcement: SS 316L helical wire
• Reinforcement wrapping: 4 ply high-quality polyester fabric
• Outer cover: Silicone convoluted cover
• Temperature range: -55 °C to 220 °C
• Typical sterilization methods: Autoclave, CIP, SIP, Ethylene oxide, Gamma radiation
• Available end fittings: Option for SS316L tri-clover ends
• Traceability: Lot traceable
• Compliance: US FDA 21 CFR 177.2600, USP Class VI, ISO 10993-1, NSF-51 on resin liner, RoHS and free of specified harmful plasticizers
• Intended uses: High-pressure steam transfer, pharmaceutical, biotech, food, ultrapure water, CIP/WFI, bulk powder transfer, load cells
